NCDA1F500-0300-M9BSDPCS
Official DistributorBy SMC
SKU
SMCNCDA1F5000300M9BSDPCS
Weight
0.01 kg

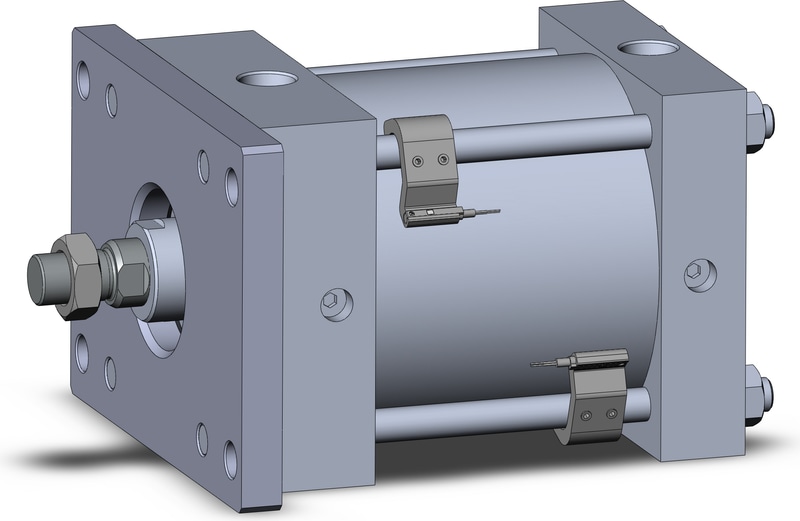

Cylinder, NCA1, Tie Rod
Technical Specifications
| Series | NCDA1 (Standard w/ Magnet) |
| Mounting | F (MF1, Front Flange) |
| Bore Size | 500 (5" - Large Bore) |
| Stroke | 0300 (3") |
| Air Cushion / Rod Boot | Both Ends (Air Cushion) |
| Thread | Nil (Small Male, Standard, Threaded) |
| Adjustment Range | Not Applicable |
| Auto Switch | M9B--Solid State, Gen. Purpose, 2 Wire, Horizontal |
| Lead Wire or Prewired Connector | SDPC (0.5m Cord Length, M12-4 Pin Connector) |
| Number | S (1 pc.) |
| X Option | None |
Why Proax for SMC NCDA1F500-0300-M9BSDPCS?
Proax is the Elite distributor of SMC NCDA1F500-0300-M9BSDPCS and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | NCDA1F5000300M9BSDPCS |
| Pack Size | 1 |
