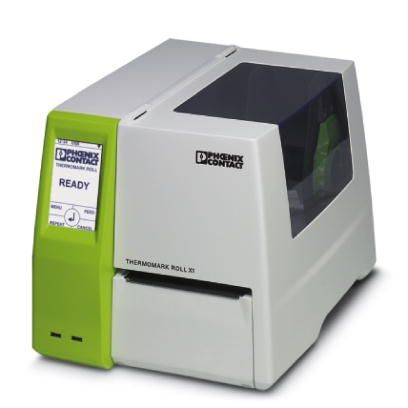

Thermal transfer printer THERMOMARK ROLL X1
Thermal transfer printer for material off the roll up to a diameter of 200 mm
- Maintenance-free operation with proven thermal transfer printing technology
- Easy to control with the PROJECT COMPLETE software
- For all labels and shrink sleeves
- Easy operating concept based on user-friendly touch screen entry
- High-quality, fast labeling
- The THERMOMARK ROLL can print markers supplied in roll format for terminal, conductor, cable, and device marking applications
- USB and Ethernet connections
Technical Specifications
General
| Interface | 10/100 Mbps Ethernet |
| Interface | USB 2.0 |
| Weight | 5 kg |
Dimensions
| Length | 412 mm |
| Height | 245 mm |
| Width | 380 mm |
Connection data
| Minimum voltage | 100 V AC |
| Max. voltage | 240 V AC |
| Additional text | 50 Hz ... 60 Hz |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads |
Accessories
5146766 - Perforation cutter, for the THERMOMARK ROLL X1, cutter width: 60 mm, suitable for: WMS continuous media, TMT (EX9,5)R, TMT2 (EX11)R, and EMT (EX15)R
5145384 - Ink ribbon, for roll printers for printing the product groups TML..., WML..., WML HF..., WML-FLAG..., EML..., EML-ESD..., EML-RM..., EML-HA..., EMLS..., EMLC..., EMLP... and PMM..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
0829544 - Ink ribbon, length: 300 m, roll length: 300 m, width: 110 mm, color: blue
0829542 - Ink ribbon, length: 300 m, roll length: 300 m, width: 110 mm, color: green
0829543 - Ink ribbon, length: 300 m, roll length: 300 m, width: 110 mm, color: red
0800342 - Ink ribbon, for roll printer for printing product group EML-HT..., length: 300 m, roll length: 300 m, width: 110 mm, color: black- 0801358 - Ink ribbon, For roll printer for printing product groups WMS..., WMS-2 HF..., and WMTB HF-HP, length: 300 m, roll length: 300 m, width: 110 mm, color: black
0801359 - Ink ribbon, for roll printer for printing product group WMS... (black), length: 300 m, roll length: 300 m, width: 110 mm, color: white- 0801360 - Ink ribbon, for roll printer for printing product groups WMS... and WMS-2 HF..., length: 300 m, roll length: 300 m, width: 64 mm, color: black
0801361 - Ink ribbon, for roll printer for printing product group WMS... (black), length: 300 m, roll length: 300 m, width: 64 mm, color: white
5146040 - Multilingual software for convenient configuration of Phoenix Contact products on standard DIN rails.- 5146053 - Multilingual software for terminal strip configuration. A marking module enables the professional marking of markers and labels for identifying terminal blocks, conductors and cables, and devices.
- 5148007 - Ink ribbon, for roll printer for printing product groups WMTB HF..., WMS-2 HF..., TMT..., EMT..., EMLF..., PML-..., length: 300 m, roll length: 300 m, width: 110 mm, color: black
- 1014402 - Ink ribbon, for roll printer and THERMOMARK CARD for printing product groups US-EMLF..., US-PML..., EMLF..., PML..., and EMLP..., length: 240 m, width: 110 mm, color: white
5146448 - External media hub, for the THERMOMARK ROLL, for roll diameter of 150 to 400 mm
5146309 - External media hub, for the THERMOMARK ROLL, for roll diameter of up to 500 mm
