5022630
Official DistributorSKU
PHX5022630
MPN
AP 2-TU
Weight
0.006 kg
Series AP

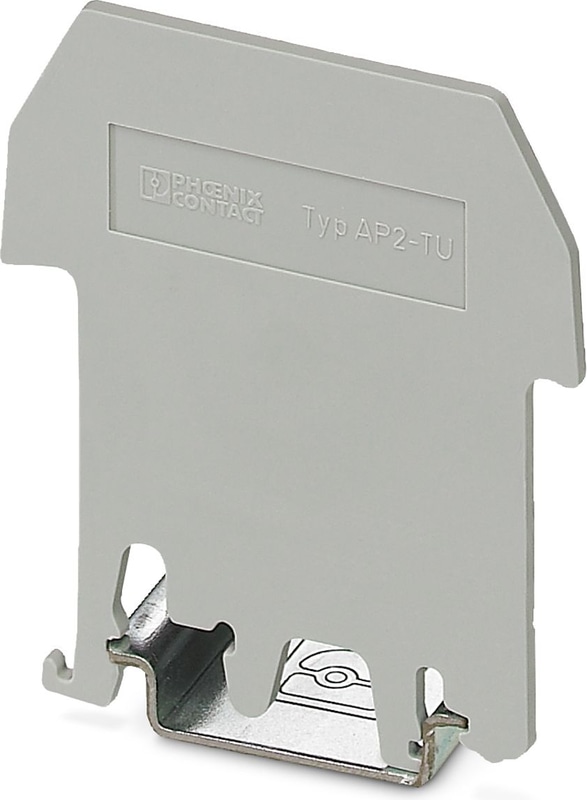

AP 2-TU - Cover profile carrier
Cover profile carrier for mounting on NS 32 or NS 35/7.5 DIN rail for attaching the cover profile AP 2.2 mm thick
- Large-surface labeling with AP-ES insert strips
- Cover profiles provide protection against unauthorized actuation of terminal strips
Technical Specifications
Dimensions
| Width | 2.1 mm |
| Height | 55.5 mm |
| Depth | 68.5 mm |
| Length | 55.5 mm |
| Material strength | 2.00 mm |
Material specifications
| Color | gray |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
Ambient conditions
| Ambient Temperature (Operation) | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
Accessories
AP 2 METER - Cover profile, for covering terminal strips, snaps onto cover profile carrier AP 2-TU, can be marked with insert strip AP-ES. Cover profile carriers should be placed at the ends and at intervals of approx. 40 cm. Length: 1 m
Why Proax for Phoenix Contact 5022630?
Proax is an authorized distributor of Phoenix Contact 5022630 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
Recommended
AP 2-TU KS - Sealable cover profile, for mounting on NS 35/7,5 DIN rail and for fixing the cover profile AP 2, with plastic knurled nut M5, space requirement: 2 mm
