3240570
Official DistributorSKU
PHX3240570
MPN
C-BCI 6/4,6
Weight
0.002 kg
Series C-BCI

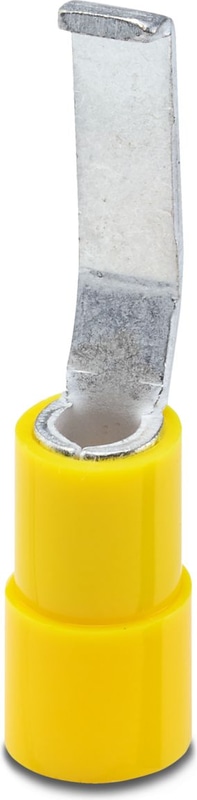

C-BCI 6/4,6 - Cable lug
Flat pin cable lug, with tab, soldered neck, yellow, 4 ... 6 mm2, pin width: 4.6 mm, easy conductor entry with Easy-Entry, for horizontal and vertical crimping with CRIMPFOX-RCI 6
- "Easy Entry" for easy and reliable conductor entry
- Halogen-free
- Electrogalvanized
Technical Specifications
Electrical properties
| Fuse | no |
Dimensions
| Width | 4.6 mm |
| Length of the insulating material sleeve | 14 mm |
| Length contact range | 18 mm |
| Maximum stripping length | 9 mm |
| Min. material thickness | 1 mm |
| Inner dimensions of the insulating collar | 6.5 mm |
Material specifications
| Color | yellow |
| Material | Copper |
| Flammability rating according to UL 94 | V2 |
| Coating | tin-plated |
| Insulating material | PA |
| Components | halogen-free |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 105 °C |
| Permanent temperature | 105 °C |
| Short-term temperature | 120 °C |
Accessories
CRIMPFOX-RCI 6 - Crimping pliers, for insulated cable lugs, 0.5 mm2 ... 6.0 mm2 (red, blue, yellow), oval crimp, symmetrical
Why Proax for Phoenix Contact 3240570?
Proax is an authorized distributor of Phoenix Contact 3240570 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
