PS2/6/16BP
Official DistributorBy ABB
SKU
ABBPS2616BP
MPN
2CDL220489R1606
Weight
0.062 kg

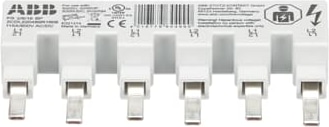

Busbar PS2/6/16BP
Documents
Technical Specifications
Technical
| Sub-Function | Branch Protection (UL 489) |
| Suitable for | S200U |
| Suitable for | S200UP |
| Suitable for Product Class | UL 489 Devices |
| Pitch | 44729.0 |
| Number of Poles | 6P |
| Number of phases | 2-phase |
| Number of Mountable Devices | 3 |
| Number of Terminals (Nterm) | 6 |
| Accessory Type | Busbar |
| Connection Type | Pin |
| Options Provided | BP |
| Rated Cross-Section | 16 mm² |
Electrical
| Rated Operational Voltage | 690 V AC/DC |
| Rated Operational Voltage | Maximum 480 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | 10 kA |
| Rated Uninterrupted Current (Iu) | 80 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Overvoltage category | III |
Design
| RAL Number | RAL 7035 - Light Grey |
| Color | grey |
Dimensions
| Width in Number of Modular Spacings | 6.0 |
| Product Net Width | 15.5 mm |
| Product Net Height | 46 mm |
| Product Net Depth / Length | 99 mm |
| Product Net Weight | 0.062 kg |
Installation
| Instructions and Manuals | 2CSC400002D0208 |
| Mounting Position | any |
