3200603
Official DistributorSKU
PHX3200603
MPN
AI 6 -18 YE
Weight
0.001 kg

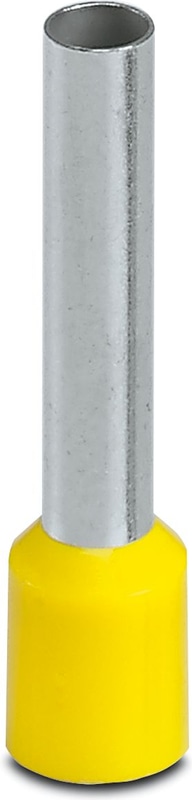

AI 6 -18 YE - Ferrule
Ferrule, Length contact range: 18 mm, sleeve length: 26 mm, color: yellow
- The AI 0,25.. ferrules can also be used to process 0.14 mm² conductors
- The insulation reliability of close connections is increased and the splicing of wires is prevented
- The ferrules with plastic sleeve are made from soft tin-plated electrolytic copper
Documents
Technical Specifications
Product properties
| Conductor category | stranded conductors, class 2, 5, 6 / B, C, K, M |
| Product property | UL certified |
| Product property | Made from soft tin-plated electrolytic copper |
| Product property | halogen-free |
Conductor connection
| Conductor cross section flexible max. | 6 mm² |
| Conductor cross section AWG max. | 10 |
| Stripping length | 21 mm |
Dimensions
| Sleeve length | 26 mm |
| Length contact range | 18 mm |
| Maximum stripping length | 21 mm |
| Ferrule diameter | 3.5 mm |
| Sleeve wall thickness | 0.2 mm |
| Insulating collar thickness | 0.3 mm |
| Inner dimensions of the insulating collar | 6.2 mm |
Material specifications
| Color | yellow (RAL 1018) |
| Material | CU-DHP |
| Flammability rating according to UL 94 | HB |
| Coating | galvanically tin-plated |
| Surface characteristics | Tin-plated |
| Components | free from silicone and halogen |
Technical data
| Sleeve length | 26 mm |
Ambient conditions
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
Standards and Regulations
| Design according to standard | DIN 46228-4, UL 486F-E |
