Name: 3200399
Brand: Phoenix Contact
SKU: PHX3200399
Price: 0.4240 CAD
Availability: BackOrder

Conductor category

Product property

Conductor cross section flexible max.

Conductor cross section AWG max.

Stripping length

Sleeve length

Length contact range

Maximum stripping length

Ferrule diameter

Sleeve wall thickness

Inner dimensions of the insulating collar

Color

Material

Coating

Surface characteristics

Permanent temperature

Short-term temperature

Request replacement

We'll send you an email with the lead time.
Note: We only deliver to Canada and US.

Request for lead time

{ manufacturer } Availability

Order { manufacturer } { mpn } { name } online at Proax. Authorized distributor offering fast shipping and local pickup across Canada.

Buy { manufacturer } { mpn } { name }

We are committed to protecting your privacy and security. We use Stripe, a PCI level 1 certified payment processor and do not sell or share any of your financial information.

 Our highly skilled in-house technical team is ready to assist with any technical needs.

<h3>CRIMPFOX 50R - Crimping pliers</h3><p>Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 35 mm2 ... 50 mm2, lateral entry, WM crimp</p><ul><li>Ergonomically designed handles ensure an optimum grip and reduce the amount of force required by 25 %</li></ul>

1212041

CRIMPFOX 50R - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 35 mm2 ... 50 mm2, lateral entry, WM crimp

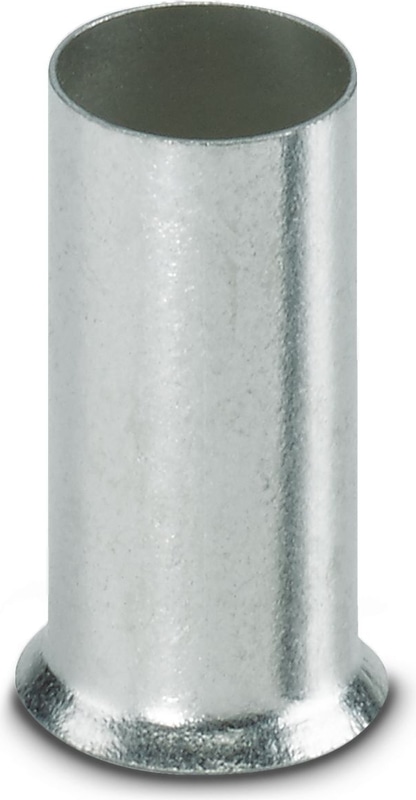

<h3>A 35 -18 - Ferrule</h3><p>Ferrule, Length contact range: 18 mm, sleeve length: 18 mm, color: silver</p><ul><li>The dimensions of the ferrules conform to DIN 46228-1</li><li>The ferrules without plastic sleeve are made from soft tin-plated electrolytic copper</li><li>The A 0,25.. ferrules can also be used to process 0.14 mm² conductors</li></ul>

Sleeve length (b), insulating collar inner dimension (d), sleeve diameter (k), sleeve wall thickness (j)

3200399

Ferrule, Length contact range: 18 mm, sleeve length: 18 mm, color: silver

3200399

A 35 -18 - Ferrule

Product properties

Conductor connection

Dimensions

Material specifications

Technical data

Ambient conditions

Why Proax for Phoenix Contact 3200399?

Conductor category	stranded conductors, class 2, 5, 6 / B, C, K, M
Product property	UL certified
Product property	Made from soft tin-plated electrolytic copper

Conductor cross section flexible max.	35 mm²
Conductor cross section AWG max.	2
Stripping length	18 mm

Color	silver-colored
Material	CU-DHP
Coating	galvanically tin-plated
Surface characteristics	Tin-plated

Permanent temperature	105 °C
Short-term temperature	120 °C
