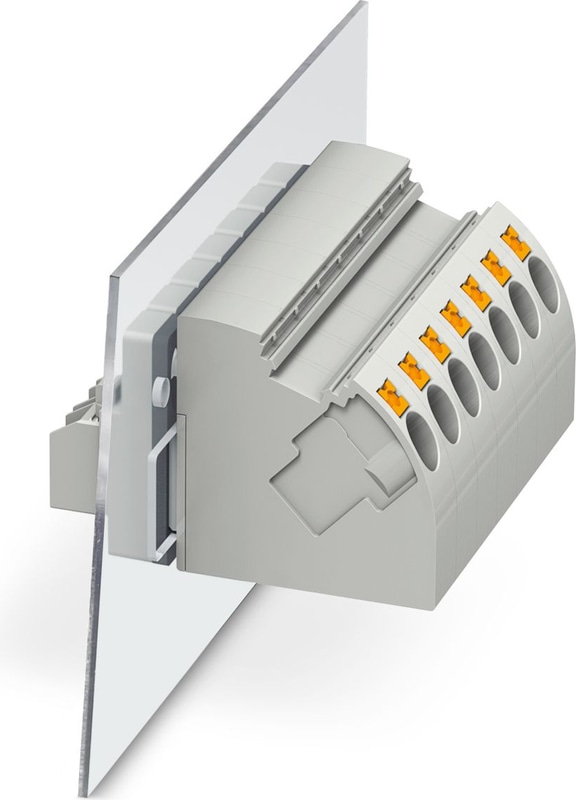

The figure shows a 7-position version
3056938
Official DistributorSKU
PHX3056938
MPN
PW 4-POT-SCM
Weight
0.009 kg
This product is Not Cancellable/Not Returnable
Series PW
PW 4-POT-SCM - Panel feed-through terminal block
Panel feed-through terminal block, connection method: Push-in spring connection, Spade connection, number of positions: 1, load current: 18 A, cross section: 0.2 mm2 - 4 mm2, connection direction of the conductor to plug-in direction: 45 °, width: 8.1 mm
- Time saving push-in connection, tools not required
- Defined contact force ensures that contact remains stable over the long term
- Intuitive operation due to color-coded actuating push button
- Tool-free snap-in principle enables easy mounting on the device panel
- Automatic panel thickness compensation enables universal use
- Reliable seal even with low-viscosity molding compounds
Technical Specifications
Product properties
| Product family | PW 4-POT-SCM |
| Number of Positions | 1 |
| Pitch | 8.1 mm |
| Number of Connections | 2 |
| Number of rows | 1 |
| Number of potentials | 1 |
| Potentials | 1 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Nominal current IN | 18 A |
| Nominal voltage UN | 800 V |
| Degree of pollution | 3 |
| Rated voltage (III/3) | 800 V |
| Rated surge voltage (III/3) | 8 kV |
Connection technology
| Connector system | PW 4 |
| Nominal cross section | 4 mm² |
Conductor connection exterior
| Connection Method | Push-in spring connection |
| Connection direction of the conductor to plug-in direction | 45 ° |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 6 mm² |
| Conductor cross section flexible, with ferrule without plastic sleeve | 0.25 mm² ... 6 mm² |
| Conductor cross section, flexible, with ferrule, with plastic sleeve | 0.25 mm² ... 4 mm² |
| 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1 mm² |
| Internal cylindrical gage | A4 |
| Stripping length | 10 mm |
Conductor connection interior
| Connection Method | Spade connection |
| Connection direction of the conductor to plug-in direction | 0 ° |
Attachment to feed-through panel
| Tightening torque | 0.5 Nm ... 0.6 Nm (Mounting screw torque) |
Material data - contact
| Note | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu alloy |
| Surface characteristics | tin-plated |
Material data - housing
| Color (Housing) | gray (7042) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature for the ball pressure test according to EN 60695-10-2 | 125 °C |
Material data – actuating element
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
Safety note
| Safety note | • Only electrically qualified personnel may install and operate the product.To recognize and prevent danger, the qualified personnel must be familiar with the basics of electrical engineering. |
| Safety note | • Observe the technical data provided here and refer to the documents listed under “Downloads”. The download area contains important information, such as installation notes, technical drawings, and 3D data. |
| Safety note | • To maintain the nominal voltage, cast the terminals on the inside. |
Dimensions
| Pitch | 8.1 mm |
| Width [w] | 8.1 mm |
External dimensions
| Height [h1] | 30 mm |
| Length [l1] | 30.5 mm |
Internal dimensions
| Height [h2] | 27 mm |
| Length [l2] | 15.5 mm |
Test for conductor damage and slackening
| Specification | IEC 60947-7-1:2009-04 |
| Result | Test passed |
Pull-out test
| Specification | IEC 60947-7-1:2009-04 |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.2 mm² / solid / > 10 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 0.2 mm² / flexible / > 10 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 4 mm² / solid / > 60 N |
| Conductor cross section/conductor type/tractive force setpoint/actual value | 4 mm² / flexible / > 60 N |
Temperature-rise test
| Specification | IEC 60512-5-1:2002-02 |
| Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Short-time withstand current
| Specification | IEC 60947-7-1:2009-04 |
Air clearances and creepage distances | 1. Insulation coordination
| Application | Metal wall 1.0 mm ... 4.0 mm |
| Specification | IEC 60664-1:2007-04 |
| Insulating material group | I |
| Comparative tracking index (IEC 60112) | CTI 600 |
| Rated insulation voltage (III/3) | 800 V |
| Rated surge voltage (III/3) | 8 kV |
| minimum clearance value - non-homogenous field (III/3) | 8 mm |
| minimum creepage distance (III/3) | 10 mm |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 Hz ... 150 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.35 mm (10 Hz ... 60.1 Hz) |
| Acceleration | 5g (60.1 Hz ... 150 Hz) |
| Test duration per axis | 2.5 h |
Glow-wire test
| Specification | IEC 60695-2-11:2000-10 |
| Temperature | 960 °C |
| Time of exposure | 30 s |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C (Depending on the current carrying capacity/derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Packaging specifications
| Type of packaging | packed in cardboard |
Accessories
EB 1/3/5/7-8 - Insertion bridge, pitch: 16.4 mm, number of positions: 4, pin assignment: 1, 3, 5, 7, length: 24 mm, color: gray
EB 1/3/5-8 - Insertion bridge, pitch: 16.4 mm, number of positions: 3, pin assignment: 1,3,5, length: 24 mm, color: gray
