Official DistributorSKU
MPN
P-DI GY
Weight
0.001 kg

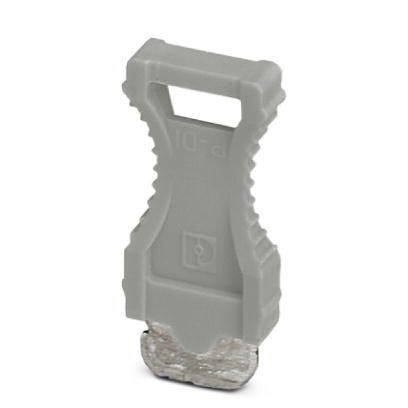

Isolating plugs - P-DI GY
Isolating plugs, length: 10.8 mm, width: 3.5 mm, height: 23.1 mm, color: gray
- Can be used in all ...-TG disconnect terminal blocks from the CLIPLINE complete system
- The P-DI isolating plug can be easily removed to release the connection and then "parked" back to front in the disconnect zone
Technical Specifications
General
| Color | gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V2 |
Dimensions
| Width | 3.5 mm |
| Length | 10.8 mm |
| Height | 23.1 mm |
General
| Maximum Load Current | 20 A |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Static insulating material application in cold | -40 °C |
Ambient conditions
| Operating Temperature | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 3047390?
Proax is an authorized distributor of Phoenix Contact 3047390 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 50 |
