Official DistributorSKU
MPN
3036712
Weight
0.001 kg
This product is Not Cancellable/Not Returnable
Series DP-PS

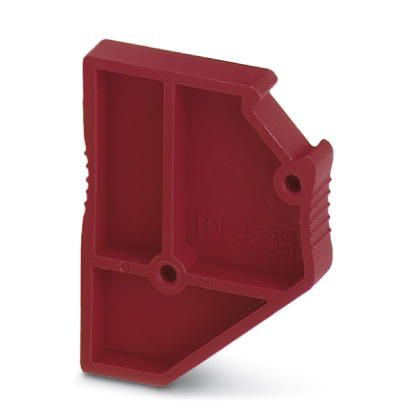

Spacer plate - DP PS-4
Spacer plate, length: 22.4 mm, width: 4.2 mm, height: 29 mm, number of positions: 1, color: red
Technical Specifications
General
| Number of Positions | 1 |
| Color | red |
| Material | PA |
| Flammability rating according to UL 94 | V0 |
Dimensions
| Width | 4.2 mm |
| Length | 22.4 mm |
| Height | 29 mm |
Ambient conditions
| Operating Temperature | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
| Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
| Permissible humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (assembly) | -5 °C ... 70 °C |
| Ambient temperature (actuation) | -5 °C ... 70 °C |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact DP PS-4?
Proax is an authorized distributor of Phoenix Contact DP PS-4 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | DPPS4 |
| Pack Size | 10 |
