![Phoenix Contact ATP-ST 4](https://proax.ca/images/products/PHX-35038_2000_int_04.jpg)
Featured
SKU
MPN
3030721
Weight
0.003 kg
Series ATP-ST

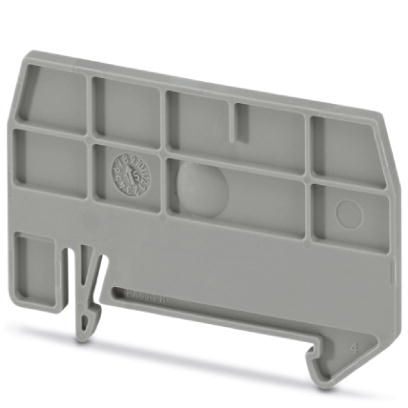

Partition plate - ATP-ST 4
Partition plate, length: 59.8 mm, width: 2 mm, height: 39 mm, color: gray
Technical Specifications
General
Color | gray |
Material | PA |
Flammability rating according to UL 94 | V0 |
Dimensions
Width | 2 mm |
Length | 59.8 mm |
Height | 39 mm |
Height NS 35/7,5 | 40.5 mm |
Height NS 35/15 | 48 mm |
General
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Static insulating material application in cold | -60 °C |
Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg |
Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Ambient conditions
Operating Temperature | -60 °C ... 105 °C (max. short-term operating temperature RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) |
Permissible humidity (storage/transport) | 30 % ... 70 % |
Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C |
Environmental Product Compliance
China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact ATP-ST 4?
Proax is an authorized distributor of Phoenix Contact ATP-ST 4 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Alternate Names | ATPST4 |
Pack Size | 50 |
