3026890
Official DistributorSKU
PHX3026890
MPN
SK 35-D
Weight
0.063 kg
Series SK

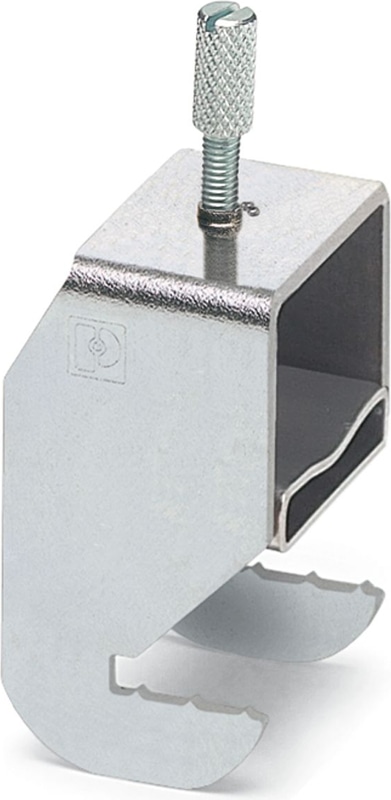

SK 35-D - Shield connection clamp
Shield connection terminal block, for direct shield on conductive mounting panels, sheet thickness 1 mm ... 2 mm
- Easy handling
- Spring-loaded, large-surface pressure plate
- Suitable for direct and busbar mounting
- Knurled screw
- As components, it is not possible to certify shield connections in accordance with the requirements of the directive and standards for electrical equipment in potentially explosive areas. As such, shield connection clamps can be used in the Ex area even without an appropriate approval or marking.
Technical Specifications
Product properties
| Pitch | 40 mm |
| Number of Connections | 1 |
| Number of rows | 1 |
Electrical properties
| Maximum power dissipation for nominal condition | 0.77 W |
| Contact resistance | < 0.001 Ω |
Connection data
| Grounding foot | Yes |
| Screw thread | M5 |
| Tightening torque | 1.5 ... 1.8 Nm |
| Connection in acc. with standard | IEC / EN |
Dimensions
| Width | 40 mm |
| Height | 20 mm |
| Depth | 105 mm |
| Pitch | 40 mm |
External dimensions
| Outside diameter | 20 mm ... 35 mm |
Material specifications
| Color | silver |
| Material | Steel |
Cable/line
| External Cable Diameter | 20 mm ... 35 mm |
Mechanical data
| Open side panel | No |
Standards and Regulations
| Connection in acc. with standard | IEC / EN |
Mounting
| Mounting Type | direct screw connection |
Accessories
AKG 4 GNYE - Connection terminal block, nom. voltage: 300 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.5 mm2 - 6 mm2, mounting: Neutral busbar, color: green-yellow
AKG 4 BK - Connection terminal block, nom. voltage: 300 V, nominal current: 41 A, connection method: Screw connection, Rated cross section: 4 mm2, cross section: 0.5 mm2 - 6 mm2, mounting: Neutral busbar, color: black
Why Proax for Phoenix Contact 3026890?
Proax is an authorized distributor of Phoenix Contact 3026890 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
