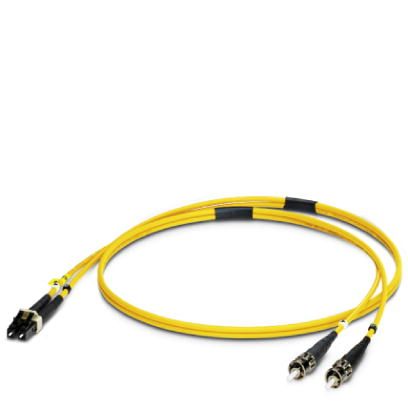

FO patch cable FL SM PATCH 1,0 LC-ST
Assembled fiber optic cable, break-out cable, fiberglass single mode 9/125 µm (OS2, Low Water Peak Fiber), connector: LC/B-FOC(STⓇ), degree of protection: IP20, for installation in cable ducts or control cabinets, length: 1 m
- Single-mode patch cable for indoor installation
- Ideal for use in distributor systems and for connecting termination devices
- 2.8 mm single elements made from halogen-free and flame-retardant material
Technical Specifications
Cable type
| Cable abbreviation | I-V(ZN)H |
| Cable Type | Single-mode fiberglass |
Ambient conditions
| Ambient Temperature (Operation) | -5 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Ambient temperature (installation) | -5 °C ... 50 °C |
| Resistance to Oil | Not resistant to oil, gasoline, acids, and lyes |
External sheath
| Outer sheath, material | FRNC |
| External sheath, color | yellow |
| External sheath, strain relief elements | Non-metallic, aramide fiber |
| External diameter max. | 5.7 mm |
| External diameter min. | 2.8 mm |
Single wire
| Single wires, quantity | 2 |
| Individual wire, diameter | 900 µm |
| Single wire, strain relief elements | Non-metallic, aramide fibers |
Mechanical properties
| Bending radius short term/long term | 30 mm |
| Bending radius, long-term | 60 mm |
| Lateral pressure, long-term | 60.00 N/cm |
| Tensile strength short-term/long-term | 600 N |
| Cable, attenuation | 0.38 dB/km |
| Cable, attenuation | 0.28 dB/km |
General
| Conductor length | 1 m |
| Cable weight | 15.80 kg/km |
| Transmission characteristics (category) | OS2 |
| Transmission Speed | 10 Gbps |
Behavior in fire
| Flame resistance | according to DIN 60332-1-2 |
| Flame resistance | IEC 60332-3-22 (Cat. A) |
| Concentration of fumes | in accordance with IEC 61034 |
| Halogen-free | According to IEC 60754-2 |
| Behavior in fire | No corrosive or toxic fumes |
| Behavior in fire | 0.36 MJ/m |
Attenuation
| 1300 nm | 0.38 dB/km |
| 1550 nm | 0.28 dB/km |
Standards and Regulations
| Concentration of fumes | in accordance with IEC 61034 |
| Flame resistance | according to DIN 60332-1-2 |
| Flame resistance | IEC 60332-3-22 (Cat. A) |
| Resistance to Oil | Not resistant to oil, gasoline, acids, and lyes |
| Halogen-free | According to IEC 60754-2 |
| Behavior in fire | No corrosive or toxic fumes |
| Behavior in fire | 0.36 MJ/m |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
1652978 - SC-RJ socket insert, duplex, for VS-A-F-IP67 panel mounting frame, can be used for fiberglass (multi-mode and single mode), PCF, and polymer fibers
2901788 - Coupling, SC duplex/SC duplex, compatible with multi-mode and single mode glass fibers, PCF, and polymer fibers
