Phoenix Contact 2959654
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
UM 45-D50SUB/S/FRONT/Q
Weight
0.323 kg
This product is Not Cancellable/Not Returnable
Series UM

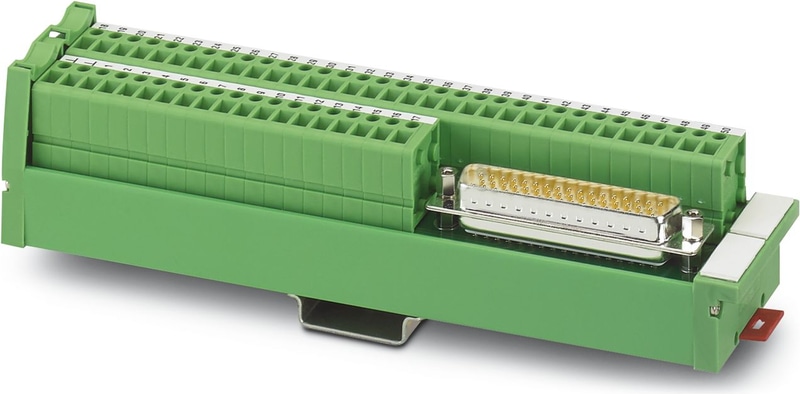

UM 45-D50SUB/S/FRONT/Q - Interface module

VARIOFACE SLIM LINE, with screw connection and D-subminiature pin strip, for assembly at a right angle on NS 35/7.5, 50 positions

Technical Specifications

Product properties

Number of Positions50

Insulation characteristics

Overvoltage categoryII
Pollution degree2

Electrical properties

Nominal voltage UN25 V AC
Nominal voltage UN60 V DC
Max. current carrying capacity per branch2.5 A
Max. current carrying capacity per branch1 A (with even load on all branches)
Rated Insulation Voltage125 V
Rated surge voltage1.2 kV (Functional insulation)

Field level

Connection in acc. with standardIEC / EN
Connection MethodScrew connection
Stripping length8 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 4 mm²
Conductor cross section flexible0.2 mm² ... 2.5 mm²
Conductor cross section AWG24 ... 12

Controller level

Connection MethodD-SUB pin strip
Number of Connections1
Number of Positions50

Signaling

Status display presentNo

Item dimensions

Width45 mm
Height185.8 mm
Depth46.69 mm

Material specifications

Colorgreen (RAL 6021)
Housing insulation materialPVC

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)-10 °C ... 50 °C
Ambient temperature (storage/transport)-10 °C ... 70 °C

Standards and Regulations

Standards/regulationsDIN EN 50178
Standards/regulationsIEC 60664

Mounting

Mounting TypeDIN rail mounting
Mounting Positionany

Notes

Notes on operationFor proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met.
Accessories
  • Phoenix Contact2302269
    2302269
    Cable - CABLE-D50SUB/B/S/ 50/KONFEK/S
  • Phoenix Contact2302272
    2302272
    Cable - CABLE-D50SUB/B/S/100/KONFEK/S
  • Phoenix Contact2302285
    2302285
    Cable - CABLE-D50SUB/B/S/150/KONFEK/S
  • Phoenix Contact2302298
    2302298
    Cable - CABLE-D50SUB/B/S/200/KONFEK/S
  • Phoenix Contact2302308
    2302308
    Cable - CABLE-D50SUB/B/S/300/KONFEK/S
  • Phoenix Contact2302311
    2302311
    Cable - CABLE-D50SUB/B/S/400/KONFEK/S
  • Phoenix Contact2302324
    2302324
    Cable - CABLE-D50SUB/B/S/600/KONFEK/S
  • Phoenix Contact2926292
    2926292
    Cable - CABLE-D-50SUB/F/OE/0,25/S/0,5M
  • Phoenix Contact2926302
    2926302
    Cable - CABLE-D-50SUB/F/OE/0,25/S/1,0M
  • Phoenix Contact2926328
    2926328
    Cable - CABLE-D-50SUB/F/OE/0,25/S/2,0M
  • Phoenix Contact2926331
    2926331
    Cable - CABLE-D-50SUB/F/OE/0,25/S/3,0M
  • Phoenix Contact2926344
    2926344
    Cable - CABLE-D-50SUB/F/OE/0,25/S/4,0M
  • Phoenix Contact2926357
    2926357
    Cable - CABLE-D-50SUB/F/OE/0,25/S/6,0M
