2956411
Official DistributorSKU
PHX2956411
MPN
EMG 17-REL/SG-B 24/21/P
Weight
0.048 kg
Series EMG

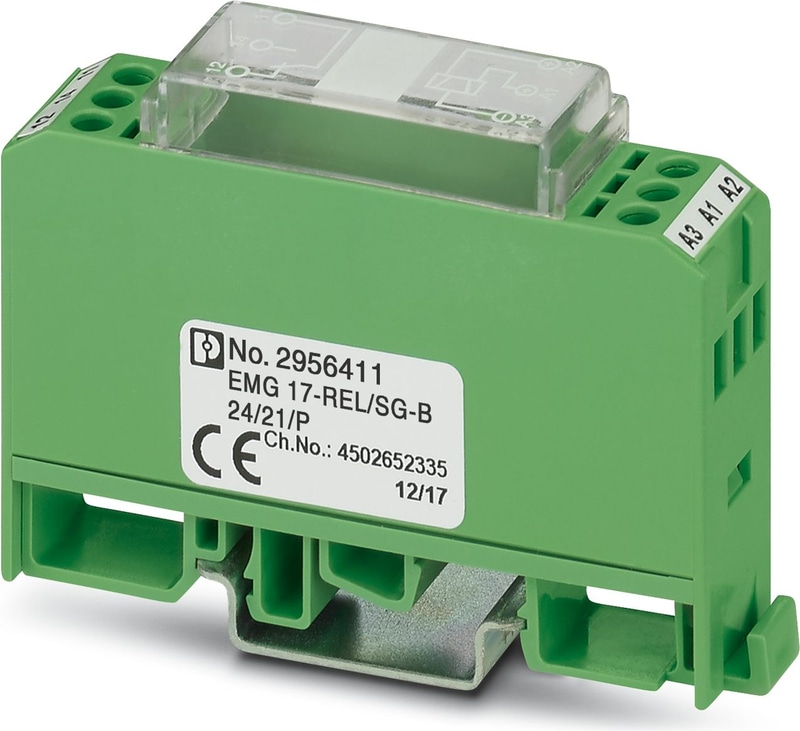

EMG 17-REL/SG-B 24/21/P - Relay Module
Relay module, with soldered-in remanence miniature switching relay, with positive switching diode wiring, contacts (AgSnO): small to large loads, 1 changeover contact, input voltage 24 V DC
EMG
The Phoenix Contact EMG Series encompasses a range of relay modules designed for various industrial applications, offering both electromechanical and solid-state relay options. These modules are engineered for reliable switching of medium to large loads and are suitable for use in control systems, automation, and other electrical circuits.
Key Features:
Compact Design: The EMG Series relay modules are designed with a compact form factor, typically featuring a 17.5 mm width, facilitating efficient DIN rail mounting and space-saving installations.
Versatile Input Voltages: These modules support a range of input voltages, including 24 V DC, 24 V AC/DC, and 230 V AC, accommodating diverse control system requirements.
Robust Output Capabilities: Equipped with various contact configurations, such as single or double changeover contacts, the EMG Series can handle different load types and capacities.
Integrated Protective Circuits: Many modules in this series include built-in protective features like freewheeling diodes, polarity protection diodes, and surge protection, enhancing operational safety and longevity.
Status Indicators: LED indicators are commonly integrated to provide clear visual status of the relay's operational state, simplifying monitoring and troubleshooting.
Technical Specifications
Utilization restriction
| EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product properties
| Product family | EMG |
| Application | Universal |
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 10⁷ cycles |
Insulation characteristics
| Insulation | Safe isolation, reinforced insulation |
Insulation characteristics: Air clearances and creepage distances between the power circuits
| Insulation | Safe isolation, reinforced insulation |
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Maximum power dissipation for nominal condition | 0.19 W |
| Test voltage (Winding/contact) | 4 kVrms (50 Hz, 1 min., winding/contact) |
Air clearances and creepage distances between the power circuits
| Rated Insulation Voltage | 250 V AC |
| Rated surge voltage | 4 kV |
Coil side
| Nominal input voltage UN | 24 V DC |
| Input voltage range | 19.2 V DC ... 26.4 V DC (20 °C) |
| Drive and function | bistable |
| Drive (polarity) | polarized |
| Typical input current at UN | typ. 8 mA |
| Typical response time | 5 ms |
| Typical release time | 5 ms |
| Pulse time range | 30 ms ... 5 s |
| Coil Voltage | 24 V DC |
| Protective circuit | Freewheeling diode; Freewheeling diode |
| Protective circuit | Reverse polarity protection; Polarity protection diode |
Switching
| Contact switching type | 1 changeover contact |
| Type of switch contact | Single contact |
| Contact Material | AgSnO |
| Maximum Switching Voltage | 250 V AC/DC |
| Minimum Switching Voltage | 5 V (at 100 mA) |
| Minimum Switching Voltage | 24 V (At 1 mA) |
| Limiting Continuous Current | 6 A |
| Maximum Inrush Current | 8 A |
| Min. switching current | 1 mA (at 24 V) |
| Min. switching current | 100 mA (At 5 V) |
| Interrupting rating (ohmic load) max. | 144 W (at 24 V DC) |
| Interrupting rating (ohmic load) max. | 43 W (at 48 V DC) |
| Interrupting rating (ohmic load) max. | 42 W (at 60 V DC) |
| Interrupting rating (ohmic load) max. | 55 W (at 110 V DC) |
| Interrupting rating (ohmic load) max. | 100 W (at 220 V DC) |
| Interrupting rating (ohmic load) max. | 1500 VA (for 250 V AC) |
Switching: when the gold layer is destroyed
| Maximum Switching Voltage | 250 V AC/DC |
| Limiting Continuous Current | 5 A |
| Maximum Inrush Current | 6 A |
| Interrupting rating (ohmic load) max. | 120 W (at 24 V DC) |
| Interrupting rating (ohmic load) max. | 40 W (at 48 V DC) |
| Interrupting rating (ohmic load) max. | 35 W (at 60 V DC) |
| Interrupting rating (ohmic load) max. | 30 W (at 110 V DC) |
| Interrupting rating (ohmic load) max. | 55 W (at 220 V DC) |
| Interrupting rating (ohmic load) max. | 1250 VA (for 250 V AC) |
Coil side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Contact side
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 17.5 mm |
| Height | 75 mm |
| Depth | 62.5 mm |
Material specifications
| Color | green (RAL 6021) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
Air clearances and creepage distances between the power circuits
| Standards/regulations | DIN EN 50178 |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | in rows with zero spacing |
| Mounting Position | any |
Accessories
EMG-GKS 12 - Device marking label, width: 12 mm, area: 12 x 8 mm, e.g. for EML(10x7) R adhesive marking material
