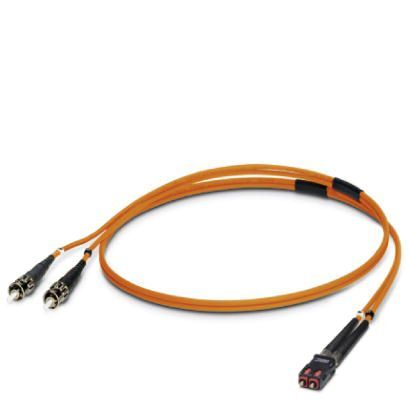

FO patch cable FL MM PATCH 1,0 ST-SCRJ
Assembled FO cable, break out cable, multimode fiberglass 50/125 µm (OM2), connector: B-FOC(ST®) / SC-RJ, degree of protection: IP20, for installation in cable ducts or control cabinets, length: 1 m
- Multi-mode patch cable for indoor installation
- Ideal for use in distributor systems and for connecting termination devices
- 2.8 mm single elements made from halogen-free and flame-retardant material
Technical Specifications
Cable type
| Cable abbreviation | I-V(ZN)H |
| Cable Type | Multimode fiberglass |
| Cable weight | 15.80 kg/km |
Ambient conditions
| Ambient Temperature (Operation) | -5 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
| Ambient temperature (installation) | -5 °C ... 50 °C |
| Resistance to Oil | Not resistant to oil, gasoline, acids, and lyes |
External sheath
| Outer sheath, material | FRNC |
| External sheath, color | orange |
| External sheath, strain relief elements | Non-metallic, aramide fiber |
| External diameter max. | 5.7 mm |
| External diameter min. | 2.8 mm |
Single wire
| Single wires, quantity | 2 |
| Individual wire, diameter | 900 µm |
| Single wire, strain relief elements | Non-metallic, aramide fibers |
Mechanical properties
| Bending radius short term/long term | 30 mm |
| Bending radius, long-term | 60 mm |
| Lateral pressure, long-term | 60.00 N/cm |
| Tensile strength short-term/long-term | 600 N |
| Cable, attenuation | 2.5 dB/km |
| Cable, attenuation | 0.7 dB/km |
| Numerical aperture | 0.2 |
General
| Cable weight | 15.80 kg/km |
| Transmission characteristics (category) | OM2 |
| Transmission Speed | 1 Gbps |
| Degree of Protection | IP20 |
Behavior in fire
| Flame resistance | according to DIN 60332-1-2 |
| Flame resistance | IEC 60332-3-22 (Cat. A) |
| Concentration of fumes | in accordance with IEC 61034 |
| Halogen-free | According to IEC 60754-2 |
| Behavior in fire | No corrosive or toxic fumes |
| Behavior in fire | 0.36 MJ/m |
Attenuation
| 850 nm | 2.5 dB/km |
| 1300 nm | 0.7 dB/km |
Standards and Regulations
| Concentration of fumes | in accordance with IEC 61034 |
| Flame resistance | according to DIN 60332-1-2 |
| Flame resistance | IEC 60332-3-22 (Cat. A) |
| Resistance to Oil | Not resistant to oil, gasoline, acids, and lyes |
| Halogen-free | According to IEC 60754-2 |
| Behavior in fire | No corrosive or toxic fumes |
| Behavior in fire | 0.36 MJ/m |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads |
Accessories
1652978 - SC-RJ socket insert, duplex, for VS-A-F-IP67 panel mounting frame, can be used for fiberglass (multi-mode and single mode), PCF, and polymer fibers
2901788 - Coupling, SC duplex/SC duplex, compatible with multi-mode and single mode glass fibers, PCF, and polymer fibers
2799322 - Fiber glass cable, duplex 50 µm/125 µm, by the meter, without male connector, for installation in stationary systems and machines
2799432 - Fiberglass cable, duplex 50/125 µm, by the meter, without connector, for outdoor installation
