BC 35,6 UT HBUS BK

Weight

0.028 kg

Series BC

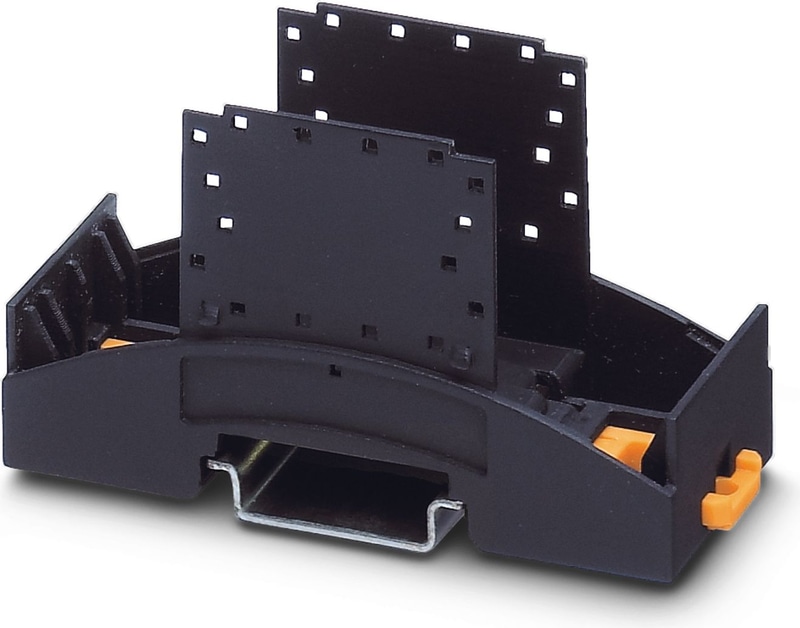

BC 35,6 UT HBUS BK - Mounting base housing

DIN rail housing for use in distribution boards in accordance with DIN 43880, Lower housing part with base latch, width: 35.6 mm, height: 89.7 mm, depth: 48.9 mm, color: black (similar RAL 9005), cross connection: DIN rail connector (optional), number of positions cross connector: 16

Coordinated housing and connection system for faster device development
Individual online configuration for diverse applications in building automation
Variety of connection technology
Can be mounted on the DIN rail or the wall
With DIN-rail-mountable bus connector and power connector system as an option
Tool-free mounting
Available in overall widths from one to nine HP (17.8 mm ... 161.6 mm)
Compliant with DIN EN 43880

Notes

Assembly instruction:

Refer to the data sheet for the range in the download area.

Product properties

Housing type	DIN rail housing for use in distribution boards in accordance with DIN 43880
Housing series	BC
Product family	BC 53,6
Max. number of positions	0)
Type	Lower housing part with base latch
Ventilation openings present	no

Dimensions

Width	35.6 mm
Height	89.7 mm
Depth	48.9 mm
Horizontal pitch	2 Div.

PCB design

PCB thickness

1.4 mm ... 1.8 mm

Material specifications

Color (Housing)	black (RAL 9005)
Flammability rating according to UL 94	V0
CTI according to IEC 60112	< 400
Housing Material	Polycarbonate
Surface characteristics	untreated

Power dissipation single housing for 20 °C

Ambient Temperature	20 °C
Reduction factor	1
Mounting Position	vertical
Power dissipation	4.78 W

Power dissipation single housing for 30 °C

Ambient Temperature	30 °C
Reduction factor	0.84
Mounting Position	vertical
Power dissipation	4 W

Power dissipation single housing for 40 °C

Ambient Temperature	40 °C
Reduction factor	0.72
Mounting Position	vertical
Power dissipation	3.44 W

Power dissipation single housing for 50 °C

Ambient Temperature	50 °C
Reduction factor	0.6
Mounting Position	vertical
Power dissipation	2.85 W

Power dissipation single housing for 60 °C

Ambient Temperature	60 °C
Reduction factor	0.48
Mounting Position	vertical
Power dissipation	2.3 W

Power dissipation single housing for 70 °C

Ambient Temperature	70 °C
Reduction factor	0.38
Mounting Position	vertical
Power dissipation	1.8 W

Vibration test

Specification	IEC 60068-2-6:2007-12
Frequency	10 - 150 - 10 Hz
Sweep speed	1 octave/min
Amplitude	0.15 mm (10 Hz ... 58.1 Hz)
Acceleration	2g (58.1 Hz ... 150 Hz)
Test duration per axis	2.5 h
Test directions	X-, Y- and Z-axis

Glow-wire test

Specification	IEC 60695-2-11:2014-02
Temperature	850 °C
Time of exposure	30 s

Mechanical strength / tumbling barrel

Specification	IEC 60068-2-31:2008-05
Height of fall	50 cm
Frequency	50

Shocks

Specification	IEC 60068-2-27:2008-02
Pulse shape	Half-sine
Acceleration	15g
Shock duration	11 ms
Number of shocks per direction	3
Test directions	X-, Y- and Z-axis (pos. and neg.)

Degree of protection (IP code)

Specification

IEC 60529:1989-11 + AMD 1:1999-11 + AMD 2:2013-08

Ambient conditions

Max. IP code to attain	IP20
Ambient Temperature (Operation)	-40 °C ... 105 °C (depending on power dissipation)
Ambient temperature (storage/transport)	-40 °C ... 70 °C
Ambient temperature (assembly)	-5 °C ... 100 °C
Relative humidity (storage/transport)	95 %

PCB data

Number of PCB holders	9
Type of PCB mount	Latching
Thickness of the PCB	1.4 mm ... 1.8 mm

Mounting

Mounting Type	DIN rail mounting/wall mounting
Mounting Position	Vertical (horizontal DIN rail)

Packaging specifications

Type of packaging	packed in cardboard
Outer packaging type	Carton
