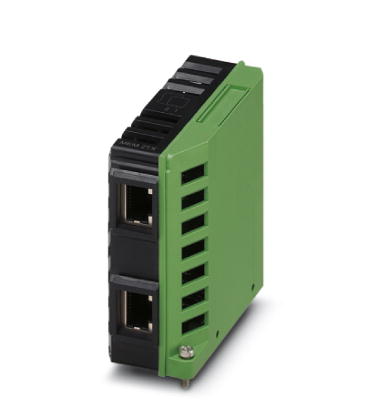

Memory module, 2-port twisted pair module for storing the switch configuration. In addition, the Media Redundancy Manager (MRM) license for use is stored within the Media Redundancy protocol (MRP).
Technical Specifications
| Degree of Protection | IP20 |
| Width | 31 mm |
| Height | 78 mm |
| Depth | 72.5 mm |
| Ambient Temperature (Operation) | 0 °C ... 55 °C (no condensation) |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Number of Ports | 2 |
| Connection Method | RJ45 socket |
| Transmission Speed | 10/100 MBit/s |
| Protocols Supported | Manager for MRP |
| Basic Functions | Configuration memory and manager for the media redundancy protocol (MRP) |
| Supply Voltage | (via head station) |
| Mounting Type | In the host system |
| Housing Material | PA |
Why Proax for Phoenix Contact 2891770?
Proax is an authorized distributor of Phoenix Contact 2891770 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
