Phoenix Contact 3273438
AllConnectorsTerminal blocksDistributor blocks
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
PTFIX 18X2,5-G GY
Weight
0.034 kg
Series PTFIX

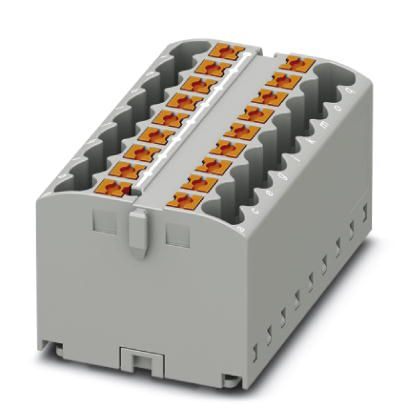

PTFIX 18X2,5-G GY - Distribution block

Distribution block, Basic terminal block, nom. voltage: 450 V, nominal current: 24 A, number of connections: 18, connection method: Push-in connection, cross section: 0.14 mm2 - 4 mm2, mounting type: adhesive, color: gray

  • Flexible use, thanks to DIN rail mounting, direct mounting or adhesive mounting
  • Clear wiring, thanks to eleven different color variants
  • Time-saving conductor connection, thanks to tool-free Push-in direct connection technology
  • Time savings of up to 80 %, thanks to ready-to-mount blocks without manual bridging
  • Space savings of up to 50 % on the DIN rail, thanks to transverse mounting

PTFIX

The Phoenix Contact PTFIX Series comprises ready-to-use distribution blocks featuring Push-in connection technology, designed to streamline potential distribution in control cabinets and various industrial applications. These blocks facilitate quick, tool-free wiring, enhancing installation efficiency and flexibility. Key Features: Ready-to-Connect Design: PTFIX blocks are pre-assembled and maintenance-free, allowing for immediate deployment without the need for manual bridging. Push-in Connection Technology: This tool-free, direct plug-in method enables the easy insertion of solid and flexible conductors with ferrules, starting from 0.25 mm², reducing installation time. Compact and Space-Saving: The compact design of PTFIX blocks saves space in control cabinets, making them ideal for applications with limited installation areas. Versatile Mounting Options: Various adapters allow for DIN rail, direct, and adhesive mounting, providing flexibility to suit different installation requirements. Color-Coded Variants: Available in up to 11 different colors, PTFIX blocks support intuitive and safe installation by enabling clear potential assignment.
Technical Specifications

General

NoteNotes on operation the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories
Number of rows1
Number of Connections18
Potentials1
Nominal cross section2.5 mm²
Colorgray
Insulating materialPA
Flammability rating according to UL 94V0
Mounting Typeadhesive
Rated surge voltage6 kV
Degree of pollution3
Overvoltage categoryIII
Insulating material groupI
Maximum power dissipation for nominal condition0.77 W
Maximum Load Current32 A
Maximum total current48 A
Nominal current IN24 A
Nominal voltage UN450 V
Open side panelNo
General informationThe maximum load current of a single clamping unit must not be exceeded.
Shock protection test specificationDIN EN 50274 (VDE 0660-514):2002-11
Back of the hand protectionguaranteed
Finger protectionguaranteed
Result of tight fit on supportTest passed
NoteWhen aligning several blocks, it is recommended to either place a DIN rail adapter underneath the connection point or a flange element between the blocks.
NoteFor versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block.
NoteWhen using the DIN rail adapter PTFIX-NS35, an aligned block must not protrude by more than a half.
Result of thermal testTest passed
Proof of thermal characteristics (needle flame) effective duration30 s
Oscillation, broadband noise test resultTest passed
Test specification, oscillation, broadband noiseDIN EN 50155 (VDE 0115-200):2008-03
Test spectrumService life test category 2, bogie-mounted
Test frequencyf1 = 5 Hz to f2 = 250 Hz
ASD level6.12 (m/s²)²/Hz
Acceleration3.12g
Test duration per axis5 h
Test directionsX-, Y- and Z-axis
Shock test resultTest passed
Test specification, shock testDIN EN 50155 (VDE 0115-200):2008-03
Shock formHalf-sine
Acceleration30g
Shock duration18 ms
Number of shocks per direction3
Test directionsX-, Y- and Z-axis (pos. and neg.)
Relative insulation material temperature index (Elec., UL 746 B)130 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))130 °C
Static insulating material application in cold-60 °C
Surface flammability NFPA 130 (ASTM E 162)passed
Specific optical density of smoke NFPA 130 (ASTM E 662)passed
Calorimetric heat release NFPA 130 (ASTM E 1354)28 MJ/kg
Smoke gas toxicity NFPA 130 (SMP 800C)passed
Fire protection for rail vehicles (DIN EN 45545-2) R22HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26HL 1 - HL 3

Dimensions

Width46.9 mm
Length28.6 mm
Height22.7 mm

Connection data

Connection MethodPush-in connection
Stripping length8 mm ... 10 mm
Connection in acc. with standardIEC 60998-2-2
Conductor cross section solid min.0.14 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.26
Conductor cross section AWG max.12
Conductor cross section flexible min.0.14 mm²
Conductor cross section flexible max.2.5 mm²
Min. AWG conductor cross section, flexible26
Max. AWG conductor cross section, flexible12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.14 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Connection cross sections directly pluggable0.34 mm² 4 mm² 24 12
Conductor cross section solid min.0.34 mm²
Conductor cross section solid max.4 mm²
Conductor cross section AWG min.24
Conductor cross section AWG max.12
Conductor cross section flexible, with ferrule without plastic sleeve min.0.34 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.2.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.34 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.2.5 mm²
Internal cylindrical gageA3

Ambient conditions

Operating Temperature-35 °C ... 105 °C (max. short-term operating temperature RTI Elec.)
Ambient temperature (storage/transport)-25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C)
Permissible humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 70 °C
Ambient temperature (actuation)-5 °C ... 70 °C

Standards and Regulations

Connection in acc. with standardIEC 60998-2-2

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
China RoHSNo hazardous substances above threshold values
Accessories
  • Phoenix Contact3212251
    3212251
    Test plugs - MPS-MT SN
  • Phoenix Contact0807575
    0807575
    KLM 2 - Terminal strip marker carrier, adjustable height, for CLIPFIX 15, CLIPFIX 35, and CLIPFIX 35-5 end brackets, can be marked using snap-in labels
  • Phoenix Contact0814788
    0814788
    KLM 3-L - Terminal strip marker carrier, adjustable height, for CLIPFIX 15, CLIPFIX 35, and CLIPFIX 35-5 end brackets, can be marked using labels in 20 x 8 mm format
  • Phoenix Contact1204517
    1204517
    Screwdriver - SZF 1-0,6X3,5
  • Phoenix Contact1944372
    1944372
    MPS-MT 1-S Test plug, consisting of test pin 1 mm diameter,
  • Phoenix Contact3030172
    3030172
    Wire bridge - FBSW 2-5/250MM
  • Phoenix Contact3030170
    3030170
    Wire bridge - FBSW 2-5/60MM
  • Phoenix Contact3030171
    3030171
    Wire bridge - FBSW 2-5/110MM
  • Phoenix Contact3030161
    3030161
    FBS 2-5 - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, length: 23 mm, color: red
  • Phoenix Contact3032143
    3032143
    FBS 2-5 GN - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: green
  • Phoenix Contact3036877
    3036877
    FBS 2-5 BU - Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: blue
  • Phoenix Contact3038969
    3038969
    Plug-in bridge, pitch: 5.2 mm, number of positions: 2, color: gray
  • Phoenix Contact3032871
    3032871
    Test adapter - PAI-4-N GY
  • Phoenix Contact0201744
    0201744
    Test plugs - MPS-MT
  • Phoenix Contact0201663
    0201663
    MPS-IH WH - Insulating sleeve, color: white
  • Phoenix Contact0201676
    0201676
    MPS-IH RD - Insulating sleeve, color: red
  • Phoenix Contact0201689
    0201689
    MPS-IH BU - Insulating sleeve, color: blue
  • Phoenix Contact0201692
    0201692
    MPS-IH YE - Insulating sleeve, color: yellow
  • Phoenix Contact0201702
    0201702
    MPS-IH GN - Insulating sleeve, color: green
  • Phoenix Contact0201728
    0201728
    MPS-IH GY - Insulating sleeve, color: gray
  • Phoenix Contact0201731
    0201731
    MPS-IH BK - Insulating sleeve, color: black
  • Phoenix Contact3002843
    3002843
    ISH 2,5/0,2 - Insulating sleeve, color: white
  • Phoenix Contact3002856
    3002856
    ISH 2,5/0,5 - Insulating sleeve, color: gray
  • Phoenix Contact3002869
    3002869
    ISH 2,5/1,0 - Insulating sleeve, color: black
  • Phoenix Contact0801837
    0801837
    Marking foil for zack marker strip - TML (EX3,8)R
  • Phoenix Contact0801833
    0801833
    Marking foil for zack marker strip - TML (104X3,8)R
  • Phoenix Contact0801832
    0801832
    Marking foil for zack marker strip - TML (104X2,8)R
  • Phoenix Contact0801836
    0801836
    Marking foil for zack marker strip - TML (EX2,8)R
  • Phoenix Contact0830768
    0830768
    Marker for terminal blocks - US-TML (104X3,8)
  • Phoenix Contact0830767
    0830767
    Marker for terminal blocks - US-TML (104X2,8)
  • Phoenix Contact0803906
    0803906
    Marker card - SK U/3,8 WH:UNBEDRUCKT
  • Phoenix Contact0803883
    0803883
    Marker card - SK U/2,8 WH:UNBEDRUCKT
