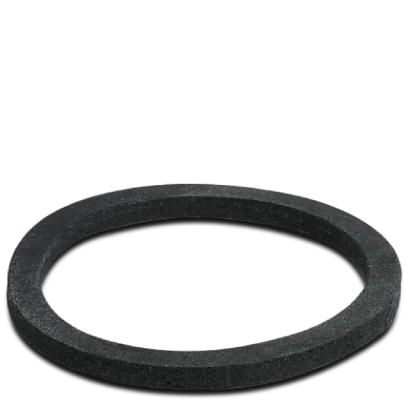

Flat gasket - WP-FS IP68 PG36
Flat gasket, material: Perbunan, degree of protection: IP68, color: black, inner diameter: 45 mm
- The Perbunan flat sealing rings are used to seal protective hose screw connections on uneven surfaces.
- Up to IP68 protection is achieved.
Technical Specifications
Dimensions
| Height (c) | 2.5 mm |
| Diameter | 54 mm |
| Inner diameter (f) | 45 mm |
| Material thickness (g) | 2.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 120 °C |
General
| Components | free from silicone and halogen |
| Material | Perbunan |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Why Proax for Phoenix Contact 3241172?
Proax is an authorized distributor of Phoenix Contact 3241172 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 25 |
