Official DistributorSKU
MPN
3240964
Weight
0.023 kg
Series WP-BASE-C-PA-HF

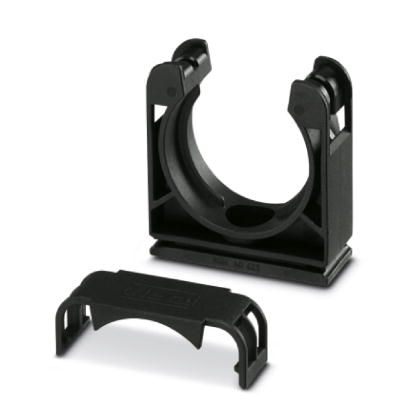

Hose holder with cover - WP-BASE C PA HF 42,5 BK
Hose holder with cover, material: PA, color: black, inflammability class in acc. with UL 94: V2
Technical Specifications
Dimensions
| Hole diameter | 6.5 mm |
| Diameter | 42.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
General
| Components | halogen-free |
| Material | PA |
| Flammability rating according to UL 94 | V2 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
3241089 - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: V0, inner diameter: 36 mm, Total length: 25 m
3240844 - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: HB, inner diameter: 36 mm, Total length: 25 m
Why Proax for Phoenix Contact WP-BASE C PA HF 42,5 BK?
Proax is an authorized distributor of Phoenix Contact WP-BASE C PA HF 42,5 BK and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | WPBASECPAHF425BK |
| Pack Size | 25 |
