Official DistributorSKU

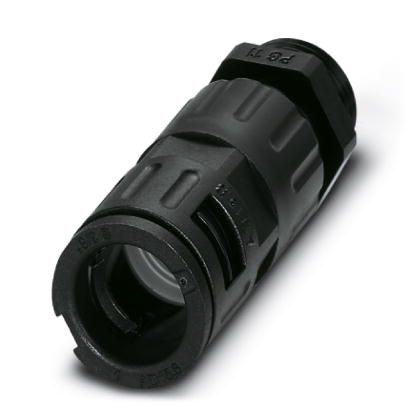

Screw connection - WP-GR HF IP69K PG11 BK
Cable gland, Pg thread, IP68/69k protection, with strain relief
Technical Specifications
Dimensions
| Width (a) | 23 mm |
| Height (c) | 59 mm |
| Wrench size | 21 mm |
| Outside diameter | 15.8 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
General
| Components | free from silicone, halogen, and cadmium |
| Material | PA 6 |
| Flammability rating according to UL 94 | V2 |
Standards and Regulations
| Halogen-free | yes |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
3240682 - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: V0, inner diameter: 12 mm, Total length: 50 m
3240840 - Protective hose, material: PA 6, UV-resistant: yes, flexible, degree of protection: IP68, color: black, flammability rating in acc. with UL 94: HB, inner diameter: 12 mm, Total length: 50 m
Why Proax for Phoenix Contact 3240932?
Proax is an authorized distributor of Phoenix Contact 3240932 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 20 |
