2880642
Official DistributorSKU
PHX2880642
MPN
D-UFB-PB
Weight
0.053 kg
This product is Not Cancellable/Not Returnable

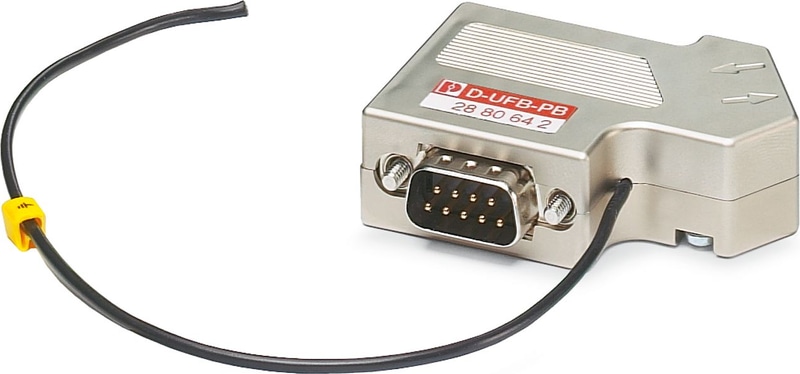

D-UFB-PB - Surge protection device
Fine surge protection in a 9-pos. D-SUB plug for PROFIBUS-DP applications with a transmission speed of up to 12 Mbps.
- Space saving with use directly at the interface
- Can be in applications up to 12 Mbps with adapted protective circuit
- Adjustment of the transmission properties with switchable termination resistor
Technical Specifications
Product properties
| Product family | DATATRAB |
| IEC test classification | C1 |
| IEC test classification | C3 |
| IEC test classification | B2 |
| VDE requirement class | C1 |
| VDE requirement class | C3 |
| VDE requirement class | B2 |
| Type | Connecting plug |
| Number of Positions | 4 |
| Surge protection fault message | none |
| Pin assignment | 3, 5, 6, 8 |
Insulation characteristics
| Overvoltage category | II |
| Pollution degree | 2 |
D-SUB connection
| Connection Method | D-SUB connector |
PCB connection
| Connection Method | Screw connection |
| Stripping length | 5 mm |
| Conductor cross section, rigid min. | 0.14 mm² |
| Conductor cross section, rigid max. | 1.5 mm² |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1 mm² |
| Conductor cross section AWG min. | 26 |
| Conductor cross section AWG max. | 16 |
| Connection Method | Screw connection & D-SUB-9 |
| Screw thread | M2 |
| Tightening torque | 0.25 Nm |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 26 ... 16 |
Dimensions
| Width | 44.5 mm |
| Height | 58 mm |
| Depth | 16.6 mm |
External dimensions
| External diameter min. | 7.6 mm |
| External diameter max. | 8.4 mm |
Material specifications
| Color | Silver |
| Housing Material | ABS, metal-plated |
Mechanical data
| Open side panel | No |
| Insertion/withdrawal cycles | > 200 |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 5.2 V DC |
| Rated current | 250 mA (25 °C) |
| Operating effective current IC at UC | ≤ 100 µA |
| Residual current IPE | ≤ 100 µA |
| Nominal discharge current In (8/20) µs (line-line) | 350 A |
| Nominal discharge current In (8/20) µs (line-ground) | 350 A |
| Total discharge current Itotal (8/20) µs | 350 A |
| Max. discharge current Imax (8/20) µs maximum (line-line) | 350 A |
| Max. discharge current Imax (8/20) µs maximum (line-earth) | 350 A |
| Output voltage limitation at 1 kV/µs (line-line) spike | ≤ 20 V |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 20 V |
| Output voltage limitation at 1 kV/µs (line-line) static | ≤ 14 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 14 V |
| Output voltage limitation (10/700) µs (line-line) | ≤ 15 V (Uo=4 kV) |
| Output voltage limitation (10/700) µs (line-earth) | ≤ 15 V (Uo=4 kV) |
| Residual voltage at In (conductor-conductor) | ≤ 25 V |
| Residual voltage at In (conductor-ground) | ≤ 25 V |
| Voltage protection level Up (line-line) | ≤ 25 V (C1 - 500 V / 250 A) |
| Voltage protection level Up (line-line) | ≤ 15 V (C3 - 25 A) |
| Voltage protection level Up (line-line) | ≤ 15 V (B2 - 4 kV / 100 A) |
| Voltage protection level Up (line-earth) | ≤ 25 V (C1 - 500 V / 250 A) |
| Voltage protection level Up (line-earth) | ≤ 15 V (C3 - 25 A) |
| Voltage protection level Up (line-earth) | ≤ 15 V (B2 - 4 kV / 100 A) |
| Response time tA (line-line) | ≤ 500 ns |
| Response time tA (line-earth) | ≤ 500 ns |
| Cut-off frequency fg (3 dB), sym. in 100 Ω system | typ. 70 MHz |
| Inductivity in series | 0.11 µH |
| Surge protection fault message | none |
| Impulse durability (line-line) | C1 - 500 V / 250 A |
| Impulse durability (line-line) | C3 - 2 kV / 25 A |
| Impulse durability (line-earth) | C1 - 500 V / 250 A |
| Impulse durability (line-earth) | C3 - 2 kV/25 A |
Ambient conditions
| Degree of Protection | IP40 |
| Ambient Temperature (Operation) | -20 °C ... 75 °C |
| Ambient temperature (storage/transport) | -20 °C ... 75 °C |
Standards and Regulations
| VDE requirement class | C1 |
| VDE requirement class | C3 |
| VDE requirement class | B2 |
Air clearances and creepage distances
| Standards/regulations | IEC 60664-1 / DIN VDE 0110-1 |
Standards Information technology specification
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | DIN EN 61643-21 |
| Standards/regulations | IEC 61643-21 |
| Standards/regulations | DIN EN 61643-21 |
| Standards/specifications | IEC 61643-21 |
Mounting
| Mounting Type | Direct assembly on the device interface |
