2880024
Official DistributorSKU
PHX2880024
MPN
PT 2X1VA/S1-230AC-ST
Weight
0.031 kg
Series PT

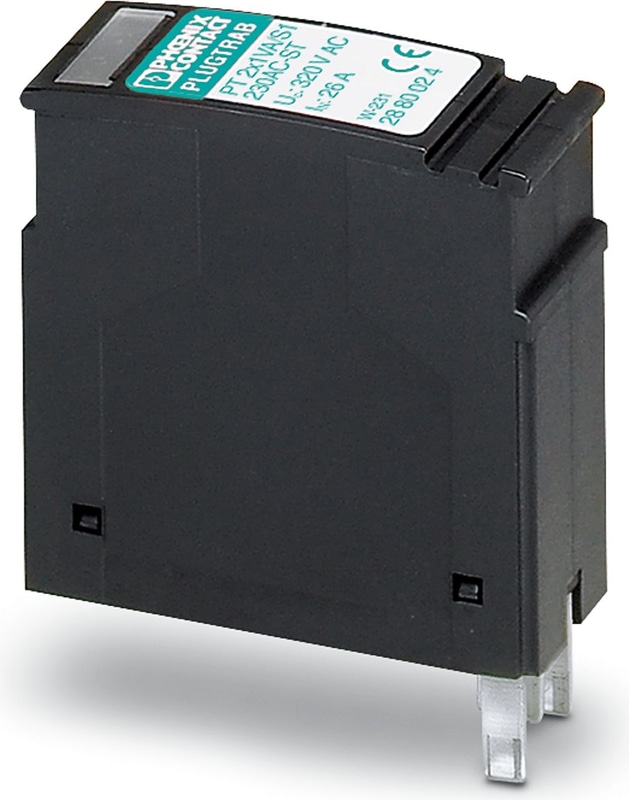

PT 2X1VA/S1-230AC-ST - Surge protection plug
PT protective plug with protective circuit for higher signal voltages, 2-channel. Nominal voltage: 230 V AC
- Easy testing and documentation with CHECKMASTER 2 with pluggable protective modules
- Maximum ease of maintenance, thanks to the 2-piece design
- Easy selection for all possible demands in MCR applications with a complete product portfolio
- The signal is not influenced during maintenance work, thanks to the impedance-neutral insertion and removal of protective plugs
PT
The Phoenix Contact PT Series comprises feed-through terminal blocks that utilize Push-in connection technology, offering efficient and reliable wiring solutions for various industrial applications. These terminal blocks are designed for straightforward conductor insertion, enhancing installation speed and ensuring secure connections.
- Push-in Connection Technology: The PT Series employs a direct plug-in method, allowing solid conductors or conductors with ferrules to be inserted easily without the need for tools. This design facilitates quick and reliable wiring.
- Compact Design: The terminal blocks feature a space-saving form factor, making them suitable for applications where installation space is limited.
- High Electrical Ratings: Depending on the specific model, the PT Series terminal blocks can handle nominal voltages up to 800 V and nominal currents up to 32 A, accommodating a wide range of electrical requirements.
- Versatile Conductor Compatibility: These terminal blocks support various conductor types and sizes, providing flexibility in wiring configurations.
- Integration with CLIPLINE Complete System: The PT Series is compatible with Phoenix Contact's CLIPLINE complete system, allowing for standardized bridging, marking, and testing accessories, which simplifies inventory management and enhances system modularity.
Technical Specifications
General
| Note | Technical data is valid in association with the following specified base elements: |
| Note | PT -BE/ FM 2839282 |
Product properties
| Product family | PLUGTRAB PT |
| IEC test classification | C1 |
| IEC test classification | C2 |
| IEC test classification | C3 |
| IEC test classification | D1 |
| Type | Male |
| Arrester can be tested with CHECKMASTER from software version: | From SW rev. 2.20 |
Insulation characteristics
| Overvoltage category | III (UC ≤ 300 V DC / 300 V AC) |
| Overvoltage category | II (UC = 320 V DC / 320 V AC) |
| Pollution degree | 2 |
Electrical properties
| Nominal voltage UN | 230 V AC (50/60 Hz) |
Connection data
| Connection Method | Screw connection (in connection with the base element) |
| Screw thread | M3 |
| Tightening torque | 0.8 Nm |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section rigid | 0.2 mm² ... 4 mm² |
| Conductor cross section AWG | 24 ... 12 |
Dimensions
| Width | 17.5 mm |
| Height | 44.8 mm |
| Depth | 51.7 mm |
| Horizontal pitch | 1 Div. |
| Complete module width | 17.7 mm |
| Complete module height | 90 mm |
| Complete module depth | 65.5 mm |
Material specifications
| Color | black (RAL 9005) |
| Flammability rating according to UL 94 | V-0 |
| Housing Material | PA 6.6 |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | Line-Line & Line-Earth Ground |
| Maximum continuous voltage UC | 320 V DC |
| Maximum continuous voltage UC | 320 V AC (50/60 Hz) |
| Rated current | 26 A AC (30 °C) |
| Rated current | 1 A DC |
| Operating effective current IC at UC | ≤ 200 µA AC |
| Operating effective current IC at UC | ≤ 10 µA DC |
| Residual current IPE | ≤ 400 µA AC |
| Residual current IPE | ≤ 20 µA DC |
| Nominal discharge current In (8/20) µs (line-ground) | 2.5 kA |
| Pulse discharge current Iimp (10/350) µs | 500 A (per path) |
| Total discharge current Itotal (8/20) µs | 5 kA |
| Output voltage limitation at 1 kV/µs (line-earth) spike | ≤ 850 V |
| Output voltage limitation at 1 kV/µs (line-earth) static | ≤ 850 V |
| Voltage protection level Up (line-earth) | ≤ 850 V (C1 - 1.4 kV / 0.7 kA) |
| Voltage protection level Up (line-earth) | ≤ 1050 V (C2 - 5 kV/2,5 kA) |
| Voltage protection level Up (line-earth) | ≤ 820 V (C3 - 100 A) |
| Response time tA (line-earth) | ≤ 25 ns |
| Input attenuation aE, asym. | typ. 0.3 dB (≤ 500 kHz / 150 Ω) |
| Cut-off frequency fg (3 dB), asym. (signal ground) in 150 Ω system | typ. 1.7 MHz |
| Capacity (core-earth) | typ. 2 nF |
| Surge protection fault message | optical |
| Max. required back-up fuse | 25 A AC (gL/gG) |
| Max. required back-up fuse | 1 A DC (T) |
| Impulse durability (line-earth) | C1 - 1,4 kV / 0,7 kA |
| Impulse durability (line-earth) | C2 - 5 kV / 2.5 kA |
| Impulse durability (line-earth) | C3 - 100 A |
| Impulse durability (line-earth) | D1 - 500 A |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2000 m (amsl) |
Standards and Regulations
| Standards/specifications | IEC 61643-21 |
| Note | 2000 + corrigendum 2001 + A1:2008, modified + A2:2012 |
| Standards/specifications | EN 61643-21 |
| Note | 2001 + A1:2009 + A2:2013 |
Mounting
| Mounting Type | on base element |
Accessories
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
