Name: 2908757
Brand: Phoenix Contact
SKU: PHX2908757

Request replacement

Estimated Lead Time

We'll send you an email with the lead time.
Note: We only deliver to Canada and US.

Request for lead time

{ manufacturer } Availability

Order { manufacturer } { mpn } { name } online at Proax. Authorized distributor offering fast shipping and local pickup across Canada.

Buy { manufacturer } { mpn } { name }

We are committed to protecting your privacy and security. We use Stripe, a PCI level 1 certified payment processor and do not sell or share any of your financial information.

 Our highly skilled in-house technical team is ready to assist with any technical needs.

<h3>CABLE-D-25SUB/M/OE/0,25/S/0,5M - Cable</h3><p>Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 25-position); cable length: 0.5 m</p><ul><li>Individual wire marking: 1, 2, 3, 4, etc.</li><li>Individual wires fitted with ferrules</li><li>Connector in accordance with IEC 60807-2/DIN 41652</li><li>1:1 connection</li><li>Open end at one end</li><li>D-SUB socket or pin strip at one end</li><li>Screw connection: 2 UNC 4-40 screws</li><li>Shield connection: H05V-K 1 mm² cable, black, length: 0.5 m</li></ul>

2926506

<h3>CABLE-D-25SUB/M/OE/0,25/S/1,0M - Cable</h3><p>Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 25-position); cable length: 1 m</p><ul><li>Individual wire marking: 1, 2, 3, 4, etc.</li><li>Individual wires fitted with ferrules</li><li>Connector in accordance with IEC 60807-2/DIN 41652</li><li>1:1 connection</li><li>Open end at one end</li><li>D-SUB socket or pin strip at one end</li><li>Screw connection: 2 UNC 4-40 screws</li><li>Shield connection: H05V-K 1 mm² cable, black, length: 0.5 m</li></ul>

2926519

<h3>CABLE-D-25SUB/M/OE/0,25/S/1,5M - Cable</h3><p>Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 25-position); cable length: 1.5 m</p><ul><li>Individual wire marking: 1, 2, 3, 4, etc.</li><li>Individual wires fitted with ferrules</li><li>Connector in accordance with IEC 60807-2/DIN 41652</li><li>1:1 connection</li><li>Open end at one end</li><li>D-SUB socket or pin strip at one end</li><li>Screw connection: 2 UNC 4-40 screws</li><li>Shield connection: H05V-K 1 mm² cable, black, length: 0.5 m</li></ul>

2926522

<h3>CABLE-D-25SUB/M/OE/0,25/S/2,0M - Cable</h3><p>Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 25-position); cable length: 2 m</p><ul><li>Individual wire marking: 1, 2, 3, 4, etc.</li><li>Individual wires fitted with ferrules</li><li>Connector in accordance with IEC 60807-2/DIN 41652</li><li>1:1 connection</li><li>Open end at one end</li><li>D-SUB socket or pin strip at one end</li><li>Screw connection: 2 UNC 4-40 screws</li><li>Shield connection: H05V-K 1 mm² cable, black, length: 0.5 m</li></ul>

2926535

<h3>CABLE-D-25SUB/M/OE/0,25/S/3,0M - Cable</h3><p>Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 25-position); cable length: 3 m</p><ul><li>Individual wire marking: 1, 2, 3, 4, etc.</li><li>Individual wires fitted with ferrules</li><li>Connector in accordance with IEC 60807-2/DIN 41652</li><li>1:1 connection</li><li>Open end at one end</li><li>D-SUB socket or pin strip at one end</li><li>Screw connection: 2 UNC 4-40 screws</li><li>Shield connection: H05V-K 1 mm² cable, black, length: 0.5 m</li></ul>

2926548

<h3>CABLE-D-25SUB/M/OE/0,25/S/4,0M - Cable</h3><p>Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 25-position); cable length: 4 m</p><ul><li>Individual wire marking: 1, 2, 3, 4, etc.</li><li>Individual wires fitted with ferrules</li><li>Connector in accordance with IEC 60807-2/DIN 41652</li><li>1:1 connection</li><li>Open end at one end</li><li>D-SUB socket or pin strip at one end</li><li>Screw connection: 2 UNC 4-40 screws</li><li>Shield connection: H05V-K 1 mm² cable, black, length: 0.5 m</li></ul>

2926551

<h3>CABLE-D-25SUB/M/OE/0,25/S/6,0M - Cable</h3><p>Assembled shielded round cable; connection 1: Single wires (25-position) (The wires are marked and fitted with ferrules. The braided shield is routed to a separate cable end.); connection 2: D-SUB pin strip (1x 25-position); cable length: 6 m</p><ul><li>Individual wire marking: 1, 2, 3, 4, etc.</li><li>Individual wires fitted with ferrules</li><li>Connector in accordance with IEC 60807-2/DIN 41652</li><li>Shield connection: H05V-K 1 mm² cable, black, length: 0.5 m</li><li>1:1 connection</li><li>Open end at one end</li><li>D-SUB socket or pin strip at one end</li><li>Screw connection: 2 UNC 4-40 screws</li></ul>

2926564

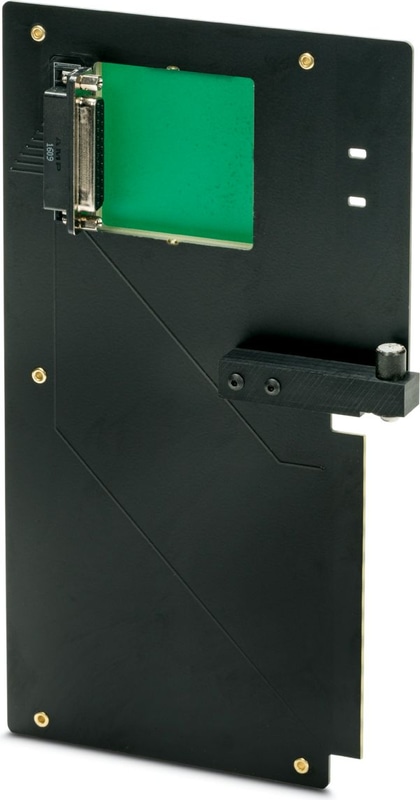

<h3>1771-CARDEDGE12/D25F - Interface card</h3><p>Allen-Bradley® PLC-5 migration board used to convert 1771 I/O and pre-wired 12-position swing arm (1771-WB or 1771-WD) to 25-position (female) D-SUB socket</p><ul><li>Durable PCB designed to easily mount within 1771 chassis</li><li>Card edge connection with locking tab</li><li>Quick cable connection via D-SUB 25 female connector</li></ul>

2908757

<h3>UM-D37M/16R-120AC/DI/C3/R - Active module</h3><p>VARIOFACE 16-channel module enhances the capabilities of Honeywell Experion LX digital input IOTA's, enabling the use of (120 V AC) digital input signals with (24 V DC) Experion LX systems</p><ul><li>UM-PRO housing</li><li>DIN rail mounting, includes grounding foot</li><li>Per channel LED (coil) signal indication</li><li>Provides isolation between 120 V field devices and 24 V controller</li><li>Per channel configuration for NO or NC contacts</li><li>Designed to be mounted on the right side of the cabinet</li></ul>

2906907

UM-D37M/16R-120AC/DI/C3/R - VARIOFACE 16-channel module enhances the capabilities of Honeywell Experion LX digital input IOTA's, enabling the use of (120 V AC) digital input signals with (24 V DC) Experion LX systems

1771-CARDEDGE12/D25F - Allen-Bradley® PLC-5 migration board used to convert 1771 I/O and pre-wired 12-position swing arm (1771-WB or 1771-WD) to 25-position (female) D-SUB socket

2908757

1771-CARDEDGE12/D25F - Interface card

Why Proax for Phoenix Contact 2908757?
