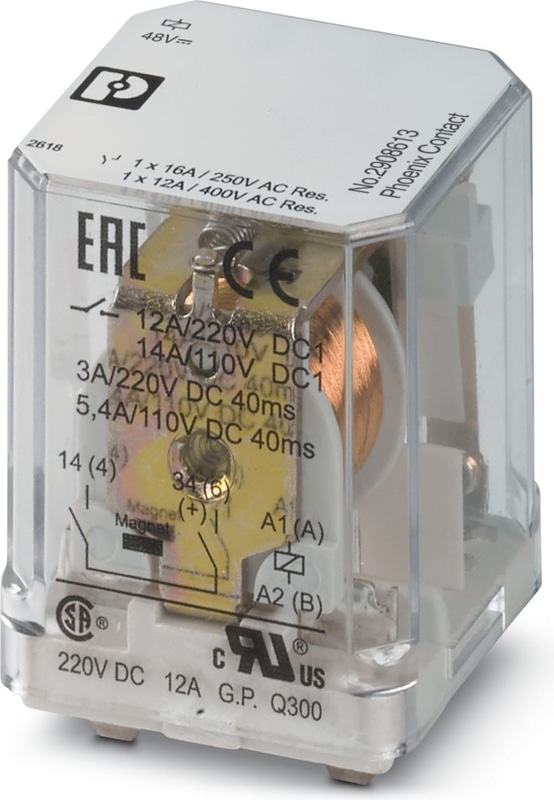

The figure shows version REL-PR1-24DC/1/MB
2908613
Official DistributorSKU
PHX2908613
MPN
REL-PR1- 48DC/1/MB
Weight
0.088 kg
Series REL-PR
REL-PR1- 48DC/1/MB - Single relay
Plug-in high-power relay with power contacts, specifically for switching high DC loads, 1 N/O contact, blowout magnet, coil voltage: 48 V DC
Technical Specifications
Product properties
| Operating mode | 100% operating factor |
| Mechanical service life | approx. 2x 10⁷ cycles |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 3 |
Electrical properties
| Service life electrical | see diagram |
| Maximum power dissipation for nominal condition | 1.9 W |
| Test voltage (Winding/contact) | 2.5 kV (50 Hz, 1 min., winding/contact) |
| Rated surge voltage | 4 kV |
Coil side
| Nominal input voltage UN | 48 V DC |
| Drive and function | monostable |
| Drive (polarity) | non-polarized |
| Typical response time | 20 ms |
| Typical release time | 15 ms |
Switching
| Contact switching type | 1 N/O contact |
| Type of switch contact | Single contact |
| Contact Material | AgNi |
| Maximum Switching Voltage | 440 V AC |
| Maximum Switching Voltage | 350 V DC |
| Minimum Switching Voltage | 5 V (At 24 mA) |
| Limiting Continuous Current | 16 A |
| Maximum Inrush Current | 50 A (20 ms) |
| Maximum Inrush Current | 30 A (4 s) |
| Min. switching current | 5 mA (at 24 V) |
| Interrupting rating (ohmic load) max. | 384 W (at 24 V DC) |
| Interrupting rating (ohmic load) max. | 768 W (at 48 V DC) |
| Interrupting rating (ohmic load) max. | 930 W (at 60 V DC) |
| Interrupting rating (ohmic load) max. | 1650 W (at 110 V DC) |
| Interrupting rating (ohmic load) max. | 2640 W (at 220 V DC) |
| Interrupting rating (ohmic load) max. | 4000 VA (for 250 V AC) |
| Switching capacity min. | 120 mW |
| Switching capacity | 1 A (at 220 V, DC13) |
| Switching capacity | 1.5 A (at 240 V, AC15) |
Connection data
| Connection Method | Plug-in connection |
Dimensions
| Width | 38.6 mm |
| Height | 36.1 mm |
| Depth | 45.5 mm |
Ambient conditions
| Degree of Protection | RT I |
| Ambient Temperature (Operation) | -40 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Corrosive gas test
| Identification | ISA-S71.04. G3 Harsh Group |
| Identification | EN 60068-2-60 |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | IEC 61810 |
Mounting
| Mounting Position | any |
