2908551
Official DistributorSKU
PHX2908551
MPN
PRT-1S-350/5S
Weight
0.022 kg
Series PRT

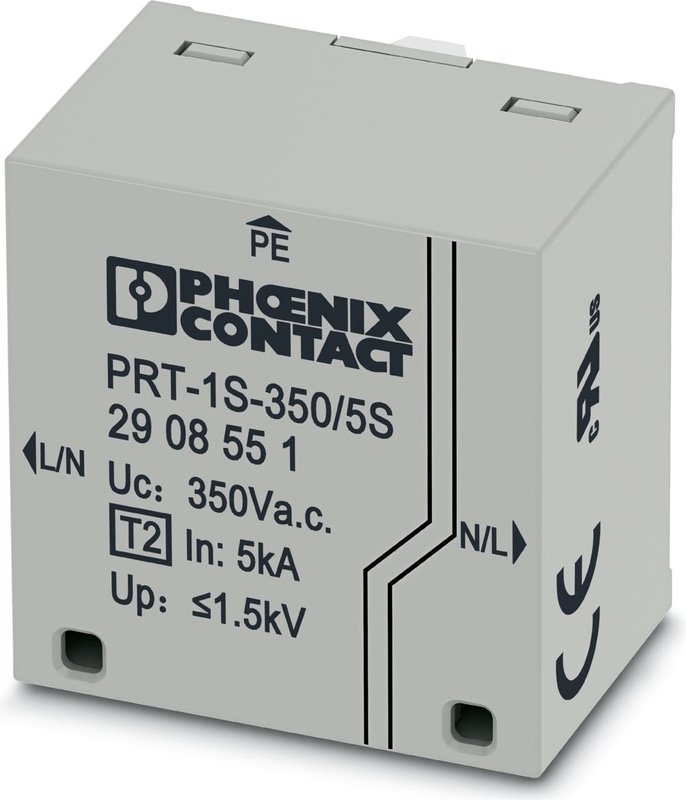

PRT-1S-350/5S - Type 2 surge arrester
Surge protective device for space-saving PCB installation, in accordance with Type 2 / CLASS II, for single-phase TN and TT power supply systems.
- Small-scale onboard surge protector
- Reliable remote signaling alarm contact function
- Conformance with current standards
Technical Specifications
Product properties
| Product family | PRINTRAB |
| IEC test classification | II |
| IEC test classification | T2 |
| EN type | T2 |
| IEC power supply system | TN-S |
| IEC power supply system | TT |
| Type | PCB onboard surge protector |
| Surge protection fault message | optical |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
| Dielectric strength | < 2.2 kV (1 min) |
Dimensions
| Width | 24 mm |
| Height | 15.7 mm |
| Depth | 25.3 mm |
Material specifications
| Color | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA 6.6 |
| Material group | I |
| Housing Material | PA 6.6 |
Protective circuit
| Mode of protection | L-N |
| Mode of protection | L-PE |
| Mode of protection | N-PE |
| Direction of action | L-N & L(N)-PE |
| Nominal voltage UN | 230 V AC (TN) |
| Nominal voltage UN | 230 V AC (TT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 350 V AC |
| Nominal discharge current In (8/20) µs | 5 kA |
| Short-circuit current rating ISCCR | 1 kA |
| Voltage protection level Up | ≤ 1.5 kV |
| TOV behavior at UT (L-N) | 336 V AC (5 s / withstand mode) |
| TOV behavior at UT (L-N) | 440 V AC (120 min / withstand mode) |
| TOV behavior at UT (N-PE) | 1200 V AC (200 ms / withstand mode) |
| Response time tA (L-N) | ≤ 25 ns |
| Response time tA (L-PE) | ≤ 100 ns |
| Response time tA (N-PE) | ≤ 100 ns |
| Max. backup fuse with branch wiring | 16 A AC (MCB B/general purpose) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 105 °C |
| Altitude | ≤ 5000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
UL specifications
| Maximum continuous operating voltage MCOV | 350 V AC |
| Maximum continuous operating voltage MCOV (L-N) | 350 V AC |
| Maximum continuous operating voltage MCOV (L-G) | 350 V AC |
| Maximum continuous operating voltage MCOV (N-G) | 350 V AC |
| Nominal discharge current In | 5 kA |
| Mode of protection | L-N |
| Mode of protection | N-G |
| Mode of protection | L-G |
| Nominal Voltage | 230 V AC |
| Power distribution system | Single phase |
| Nominal frequency | 50/60 Hz |
| Measured limiting voltage MLV (L-N) | 1400 V |
| Measured limiting voltage MLV (L-G) | 1400 V |
| Measured limiting voltage MLV (N-G) | 1400 V |
| SPD Type | 4CA |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
EN 61643-11
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | PCB mounting |
| Mounting Position | Internal |
Why Proax for Phoenix Contact 2908551?
Proax is an authorized distributor of Phoenix Contact 2908551 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
