Phoenix Contact 2908452
AllMeasurement & MonitoringMCR technologyFlexible I/O marshalling system

2908452

Official Distributor

By Phoenix Contact

SKU
PHX2908452
MPN
IOA RPSS-I-I/HART/EX
Weight
0.096 kg

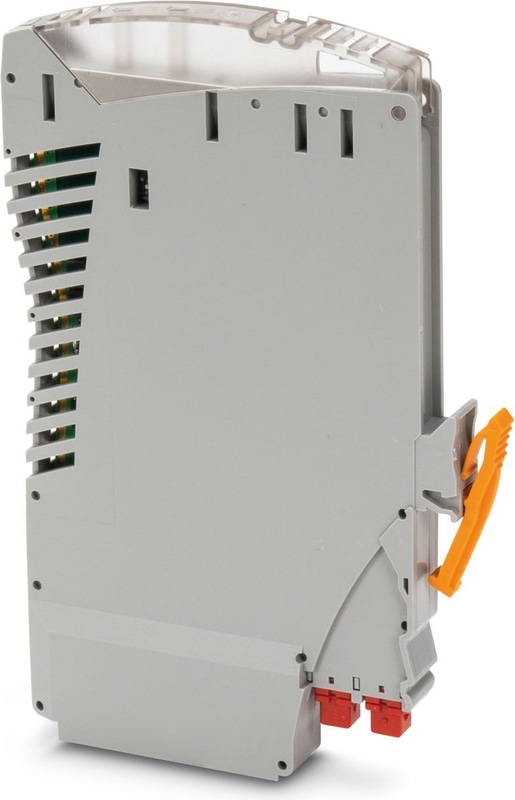

IOA RPSS-I-I/HART/EX - Power/input isolating amplifier

Ex ic repeater power supply and input signal conditioner, HART for VIP I/O-Marshalling base elements: Transmits 0/4 ... 20 mA signals from the potentially explosive area (zone 2, CID2) to a load (active or passive) in the safe area. 3-way electrical isolation

  • Two-stage progressive release allowing for voltage checks with field-powered devices
  • Channel for marking accessories
  • Integrated keying reduces possible user error during replacement
  • Signal disconnect with test points
  • Bidirectional HART signal transmission
  • 3-way electrical isolation
Technical Specifications

Product properties

Product familyVIP I/O-Marshalling
No. of channels1

Insulation characteristics

Overvoltage categoryII
Degree of pollution2

Electrical properties

Electrical isolationReinforced insulation in accordance with IEC 61010-1
Limit frequency (3 dB)1.75 kHz (typ.)
Step response (10-90%)< 200 µs (typ.)
Maximum temperature coefficient0.01 %/K
Temperature coefficient, typical0.01 %/K
Maximum transmission error< 0.1 % (of final value)

Electrical isolation Input/output/power supply

Electrical isolation250 Vrms (Rated insulation voltage (overvoltage category II; degree of pollution 2, safe isolation as per EN 61010-1))
Electrical isolation2.5 kV (50 Hz, 1 min., test voltage)
Electrical isolation60 V (Peak value in accordance with IEC/EN/UL/CSA C22.2 60079-11)

Supply

Nominal Supply Voltage24 V DC
Supply Voltage Range18 V DC ... 30 V DC
Power consumption≤ 1600 mW (at IOUT = 20 mA, 24 V DC, 600 Ω load)

Signal

Input SignalCurrent
Current Input Signal4 mA ... 20 mA (repeater power supply and isolator operation)
Current Input Signal0 mA ... 20 mA (isolator operation)
Transmitter supply voltage> 17 V (20 mA)
Step response (10-90%)typ. 300 µs (4 mA ... 20 mA)
Step response (10-90%)typ. 1000 µs (0 mA ... 20 mA)
Output descriptionCurrent output (active and passive)
Current Output Signal0 mA ... 20 mA (isolator amplifier)
Current Output Signal4 mA ... 20 mA (repeater power supply and isolator operation)
Max. current output signal22.5 mA
Transmission Behavior1:1 to input signal
Load/Output Load Current Output≤ 600 Ω (20 mA)
Load/Output Load Current Output525 Ω (22.5 mA)
Residual ripple< 20 mVrms (600 Ω)
Output ripple< 20 mVrms (at 600 Ω)
Output behavior in the event of an error0 mA (Cable break in the input)
Output behavior in the event of an error≥ 22.5 mA (Cable short-circuit in the input)
Underload/overload signal range0 mA ... 22.5 mA (According to NE43)

Connection data

Connection MethodScrew connection
Stripping length10 mm
Screw threadM3
Conductor cross section rigid0.2 mm² ... 1.5 mm² (with ferrule)
Conductor cross section rigid0.2 mm² ... 2.5 mm² (without ferrule)
Conductor cross section flexible0.2 mm² ... 1.5 mm²
Conductor cross section AWG24 ... 12 (flexible)

Safety data

Input voltage Ui0 V (nA, nB)
Input voltage Ui30 V (nC, nD)
Input voltage Ui30 V (Controller interface)
Input current Ii100 mA (Controller interface)
Inductance Li0 mH
Capacitance Ci0 nF
Max. output voltage Uo28 V (nA, nB)
Max. output voltage Uo0 V (nC, nD)
Max. output current Io104 mA
Max. output power Po726 mW
Safety-related maximum voltage Um60 V AC/DC (Peak)
IIC: Max. external inductivity Lo / Max. external capacitance Co/ 0.27 µF
IIB/IIIC/IIIB/IIIA: Max. external inductivity Lo / Max. external capacitance Co/ 1.65 µF
IIA: Max. external inductivity Lo / Max. external capacitance Co/ 6.6 µF
IIC: Max. external inductivity Lo / Max. external capacitance Co7.3 mH
IIB/IIIC/IIIB/IIIA: Max. external inductivity Lo / Max. external capacitance Co14.7 mH
IIA: Max. external inductivity Lo / Max. external capacitance Co29.5 mH

Data communication (bypass)

HART FunctionYes
Protocols SupportedHART
Limit frequency (3 dB)> 1.75 kHz (typical)

Signaling

Status displayGreen LED (supply voltage)

Dimensions

Width9.8 mm
Height75.2 mm
Depth113.2 mm

Material specifications

Colorgray (RAL 7042)
Flammability rating according to UL 94V0

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)-40 °C ... 70 °C
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude2000 m (max. altitude above sea level)
Permissible humidity (operation)5 % ... 95 %

ATEX

Identification II 3G Ex ec IIC T4 Gc
Identification II 3G Ex ec [ic] IIC T4 Gc
Identification II (3)D [Ex ic IIIC Dc]
CertificateSira 17ATEX4208X

IECEx

IdentificationEx ec IIC T4 Gc
IdentificationEx ec [ic] IIC T4 Gc
Identification[Ex ic IIIC Dc]
CertificateIECEx SIR 17.0047X

CSA, USA/Canada

IdentificationClass I, Div. 2 Groups A, B, C, D T4
IdentificationANIFW apparatus for connection to:Class I, II, III, Div. 2 Groups A, B, C, D, F, G
IdentificationClass I, Zone 2 AEx ec IIC T4 Gc
IdentificationAEx ec [ic] IIC T4 Gc
IdentificationConnection to Zone 22, [Ex ic IIIC Dc]
IdentificationConnection to: Class I, II, III Div. 2 Groups A, B, C, D, F, G
IdentificationEx ec IIC T4 Gc
IdentificationEx ec [ic] IIC T4 Gc
Identification[Ex ic IIIC Dc]

UKEX

Identification II 3G Ex ec IIC T4 Gc
Identification II 3G Ex ec [ic] IIC T4 Gc
Identification II (3)D [Ex ic IIIC Dc]
CertificatePxCIF23UKEX2908452X

Corrosive gas test

IdentificationISA S71.04.2013 G3 Harsh Group A

EMC data

Electromagnetic compatibilityConformance with EMC directive

Electromagnetic HF field

DesignationElectromagnetic RF field
Standards/regulationsEN 61000-4-3
Typical deviation from the measuring range final value1 %

Fast transients (burst)

DesignationFast transients (burst)
Standards/regulationsEN 61000-4-4
Typical deviation from the measuring range final value1 %

Conducted interference

DesignationConducted interferences
Standards/regulationsEN 61000-4-6
Typical deviation from the measuring range final value1 %

Standards and Regulations

Electrical isolationReinforced insulation in accordance with IEC 61010-1

Mounting

Mounting Positionany
Accessories
  • 0818085
    0818085
    Marker for terminal blocks - UC-TM 6
  • 0818344
    0818344
    Marker for terminal blocks - UC-TM 6 BU
  • 0809793
    0809793
    Zack marker strip - ZB 5,08:UNBEDRUCKT
  • 1051993
    1051993
    Marker pen - B-STIFT
