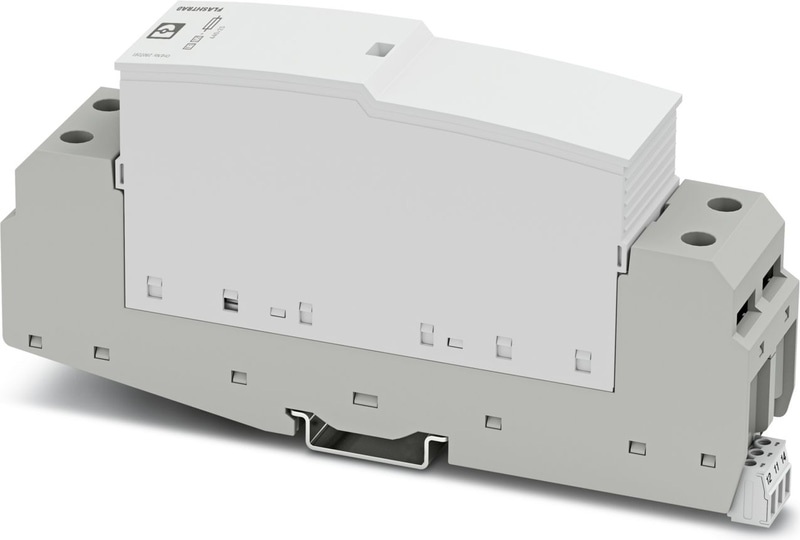

FLT-SEC-H-T1-1C-440/25-FM - Type 1+2 combined lightning current and surge arrester
Plug-in lightning current arrester, in accordance with Type 1/Class I, with integrated surge-proof fuse, for 1-phase power supply networks with combined PE and N installed in one conductor (L1, PEN).
- Surge protection family for universal use with optimum energy coordination from the lightning current arrester to the device protection
- Easy to maintain due to consistently pluggable protection modules
- Excellent level of information provided by mechanical/visual status indicator and remote indication contact
- Optimum protective effect in the event of high-energy lightning currents, thanks to spark gap technology with low residual voltage characteristic
- Integrated lightning-current-proof backup fuse for a low overall voltage protection level and space savings of up to 80% compared to an external backup fuse
Technical Specifications
Product properties
| Product family | SEC Family |
| IEC test classification | I / II |
| IEC test classification | T1 / T2 |
| EN type | T1 / T2 |
| IEC power supply system | TN |
| IEC power supply system | IT |
| Type | DIN rail module, two-section, divisible |
| Number of Positions | 1 |
| Surge protection fault message | Optical, remote indicator contact |
Insulation characteristics
| Overvoltage category | III |
| Pollution degree | 2 |
Electrical properties
| Nominal frequency fN | 50 Hz (60 Hz) |
Indicator/remote signaling
| Connection name | Remote fault indicator contact |
| Switching function | Changeover contact |
| Operating Voltage | 12 V AC ... 250 V AC |
| Operating Voltage | 125 V DC (200 mA DC) |
| Operating current | 10 mA AC ... 1 A AC |
| Operating current | 1 A DC (30 V DC) |
Connection data
| Connection Method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 4.5 Nm |
| Stripping length | 18 mm |
| Conductor cross section flexible | 2.5 mm² ... 35 mm² |
| Conductor cross section rigid | 2.5 mm² ... 35 mm² |
| Conductor cross section AWG | 13 ... 2 |
| Connection Method | Fork-type cable lug |
| Conductor cross section flexible | 1.5 mm² ... 16 mm² |
Remote fault indicator contact
| Connection Method | Plug-in/screw connection via COMBICON |
| Screw thread | M2 |
| Tightening torque | 0.25 Nm |
| Stripping length | 7 mm |
| Conductor cross section flexible | 0.14 mm² ... 1.5 mm² |
| Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
| Conductor cross section AWG | 28 ... 16 |
Dimensions
| Width | 35.5 mm |
| Height | 167 mm |
| Depth | 74.5 mm |
| Horizontal pitch | 2 Div. |
Material specifications
| Color (Male connector) | light grey (RAL 7035) |
| Color (Base element) | gray (RAL 7042) |
| Flammability rating according to UL 94 | V-0 |
| CTI value of material | 600 |
| Insulating material | PA 6.6-FR 20% GF |
| Insulating material | PBT-FR |
| Material group | I |
| Housing Material | PA 6.6-FR 20 % GF |
| Housing Material | PBT-FR |
Mechanical data
| Open side panel | No |
Protective circuit
| Mode of protection | L-N |
| Mode of protection | L-PE |
| Mode of protection | L-PEN |
| Mode of protection | N-PE (4+0) |
| Direction of action | 1L-N/PE |
| Nominal voltage UN | 400 V AC (TN) |
| Nominal voltage UN | 400 V AC (IT) |
| Nominal frequency fN | 50 Hz (60 Hz) |
| Maximum continuous voltage UC | 440 V AC |
| Residual current IPE | ≤ 5 µA |
| Nominal discharge current In (8/20) µs | 25 kA |
| Maximum discharge current Imax (8/20) µs | 50 kA |
| Impulse discharge current (10/350) µs, charge | 12.5 As |
| Impulse discharge current (10/350) µs, specific energy | 160 kJ/Ω |
| Impulse discharge current (10/350) µs, peak value limp | 25 kA |
| Follow current interrupt rating Ifi | 50 kA |
| Short-circuit current rating ISCCR | 50 kA |
| Voltage protection level Up | ≤ 2.5 kV |
| Residual voltage Ures | ≤ 2.1 kV (at In) |
| Residual voltage Ures | ≤ 2.8 kV (at 50 kA) |
| Residual voltage Ures | ≤ 1.7 kV (at 12.5 kA) |
| Residual voltage Ures | ≤ 1.5 kV (at 5 kA) |
| Residual voltage Ures | ≤ 1.35 kV (at 2.5 kA) |
| Front of wave sparkover voltage at 6 kV (1.2/50) µs | ≤ 2.5 kV |
| TOV behavior at UT | 580 V AC (5 s / withstand mode) |
| TOV behavior at UT | 760 V AC (120 min / withstand mode) |
| TOV behavior at UT | 1640 V AC (200 ms / safe failure mode) |
| Response time tA | ≤ 100 ns |
Ambient conditions
| Degree of Protection | IP20 (only when all terminal points are used) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
EN 61643-11
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | DIN rail: 35 mm |
Accessories
CLIPFIX 35 - Quick mounting end clamp for NS 35/7,5 DIN rail or NS 35/15 DIN rail, with marking option, width: 9.5 mm, color: gray
X-PEN 0,35 - Marker pen without ink cartridge, for manual labeling of markers, labeling extremely wipe-proof, line thickness 0.35 mm
FLT-SEC-H MPB-3+1 - Wiring bridge for connecting three FLASHTRAB SEC HYBRID lightning arresters with an N/PE spark gap to a 3+1 circuit for TN-S-/TT systems. Connecting pitch of 17.5 mm, 1-phase, 8-pos., 35 mm2 cross section with stable plastic housing for the required touch proofness when used as neutral conductor bridge.
MPB 18/1-8/35 - Wiring bridge for modules with 17.5 mm connecting pitch, 1-phase, 8-pos., 35 mm2 cross section, and mounted end caps
MPB 18/1-6/35 - Wiring bridge for modules with 17.5 mm connecting pitch, 1-phase, 6-pos., 35 mm2 cross section, and mounted end caps
