POWERSET BC-385/3/FM
Weight
0.977 kg
Series POWERSET-BC

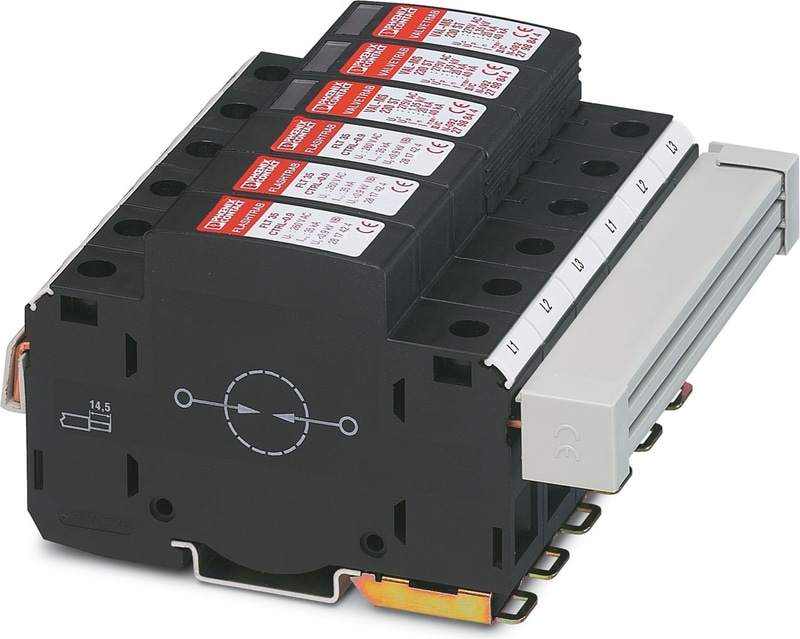

POWERSET BC-385/3/FM - Type 1+2 special combined lightning current and surge arrester
Lightning and surge arrester combination, in accordance with Type 1+2/Class I+II, for 3-phase power supply networks, with combined PE and N installed in one conductor (L1, L2, L3, PEN). Consisting of 3 x FLT 35 CTRL-4.0 and 3 x VAL-MS 400/FM, incl. jumpers and labeling.
Technical Specifications
Product properties
| IEC test classification | I + II |
| IEC test classification | T1 + T2 |
| EN type | T1 + T2 |
| IEC power supply system | TN |
| IEC power supply system | TT |
| Type | DIN rail module, two-section, divisible |
| Number of Positions | 3 |
| Surge protection fault message | Optical (Type 2 arrester), remote indication contact (Type 2 arrester) |
FLT 35 CTRL-4.0
| Connection Method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 4.5 Nm |
| Stripping length | 14.5 mm |
VAL-MS BE/FM
| Connection Method | Screw connection |
| Screw thread | M5 |
| Tightening torque | 3 Nm (1.5 mm² ... 16 mm²) |
| Tightening torque | 4.5 Nm (25 mm² ... 35 mm²) |
| Stripping length | 16 mm |
Material specifications
| Color | black (RAL 9005) |
| Color | gray (RAL 7042) |
Mechanical data
| Open side panel | No |
Protective circuit
| Direction of action | 3L-PEN |
| Nominal voltage UN | 230/400 V AC (TN) |
| Nominal voltage UN | 230/400 V AC (TT) |
| Nominal discharge current In (8/20) µs (L-N) | 20 kA |
| Impulse discharge current (10/350) µs (L-N), peak current value Iimp | 35 kA |
Ambient conditions
| Degree of Protection | IP20 (only when all terminal points are used) |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
| Permissible humidity (operation) | 5 % ... 95 % |
Standards and Regulations
| Standards/specifications | IEC 61643-11 |
| Note | 2011 |
| Standards/specifications | EN 61643-11 |
| Note | 2012 |
Mounting
| Mounting Type | DIN rail: 35 mm |
