2905613
Official DistributorSKU
PHX2905613
MPN
PWT CCT-SET 4
Weight
0.189 kg
Series PWT-CCT-SET
PWT CCT-SET 4 - Mounting material

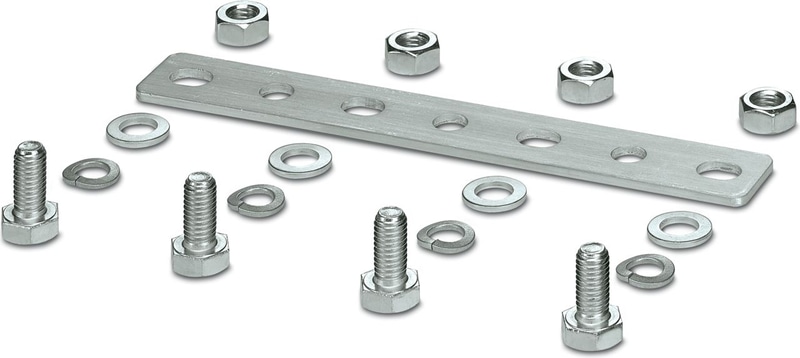

Mounting set for connecting 4 lightning current arresters, type PWT 35-800AC-FM
Technical Specifications
Product properties
| Product family | POWERTRAB |
PE conductor connection
| Connection Method | Ring cable lug |
| Screw thread | M10 |
| Tightening torque | 20 Nm |
| Conductor cross section flexible | 16 mm² ... 95 mm² |
| Conductor cross section rigid | 16 mm² ... 95 mm² |
| Conductor cross section AWG | 6 ... 3/0 |
Material specifications
| Color | Silver |
| Color | gray (RAL 7042) |
UL connection data
| Tightening torque | 175 lbf-in. |
| Conductor cross section AWG | 3/0 |
Why Proax for Phoenix Contact 2905613?
Proax is an authorized distributor of Phoenix Contact 2905613 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
