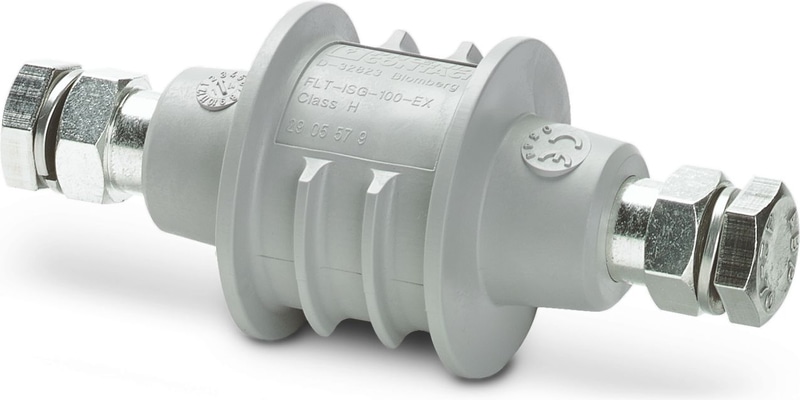

FLT-ISG-100-EX - Spark gap
Isolating spark gap for the hazardous area with plastic sleeve and M10 connection thread screws. For indirect connection/grounding of operationally isolated system parts in the event of lightning.
- Use in harsh environments with robust design
- Suitable for potentially explosive areas with corresponding approvals
- Easy mounting with standardized connection technology
Technical Specifications
General
| Note | Connection: screw (DIN 933), M10x25, wrench size: 17 mm, spring washer (DIN 7980), size: 10 |
Product properties
| Type | Screw-on module |
| Surge protection fault message | none |
Flange
| Connection Method | Connection bolts |
| Screw thread | M10 |
Dimensions
| Length | 100 mm +2 mm |
Housing
| Diameter housing | 45.50 mm |
Material specifications
| Color | gray (RAL 7042) |
| Material | TPE-S |
| Material Connection bolts | CuZn/galv. Sn |
| Material | Niro A2 |
| Material | FSt/galv. Zn |
Protective circuit
| Nominal discharge current In (8/20) µs | 100 kA |
| Lightning surge current Iimp (10/350) μs | 100 kA |
| Alternating voltage response Uaw | ≤ 0.5 kV |
| Rated power-frequency withstand voltage UwAC | 250 V AC |
| Rated DC withstand voltage UwDC | 354 V DC |
| Rated impulse sparkover voltage Ur imp | ≤ 1.25 kV |
| Rated alternating discharge current | 500 A / 0.2 s (at 50/60 Hz, max. discharge current in the event of external voltage influence at the installation location) |
| Response time tA | ≤ 100 ns |
Ambient conditions
| Degree of Protection | IP67 (according to IEC 60529) |
| Ambient Temperature (Operation) | -20 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 60 °C |
| Altitude | ≤ 2000 m (amsl) |
| Permissible humidity (operation) | 95 % (according to DIN ISO 60068-2-30 method 1) |
Conformity/Approvals
| ATEX | II 2 G Ex d IIC T6 Gb |
| ATEX | II 2 D Ex tb IIIC T80 °C Db IP 66/67 |
| IECEx | Ex d IIC T6 Gb |
| IECEx | Ex tb IIIC T80 °C Db IP66/67 |
Standards and Regulations
| Standards/specifications | EN 62561-3 |
| Note | 2017 |
| Standards/specifications | IEC 60079-0 |
| Note | 2017 |
| Standards/specifications | EN IEC 60079-0 |
| Note | 2018 |
| Standards/specifications | IEC 60079-1 |
| Note | 2014 |
| Standards/specifications | EN 60079-1 |
| Note | 2014 |
| Standards/specifications | IEC 60079-31 |
| Note | 2013 |
| Standards/specifications | EN 60079-31 |
| Note | 2014 |
Mounting
| Mounting Type | Screw mounting |
Accessories
FLT-ISG-PL-11 - Plate for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 11 mm.
FLT-ISG-PL-14 - Plate for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 14 mm.
FLT-ISG-PL-18 - Plate for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 18 mm.
FLT-ISG-PL-22 - Plate for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 22 mm.
FLT-ISG-PL-26 - Plate for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 26 mm.
FLT-ISG-PL-33 - Plate for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 33 mm.
FLT-ISG-PL-36 - Plate for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 36 mm.
FLT-ISG-PL-39 - Plate for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 39 mm.
FLT-ISG-BR-11 - Bracket for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 11 mm.
FLT-ISG-BR-22 - Bracket for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 22 mm.
FLT-ISG-BR-26 - Bracket for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 26 mm.
FLT-ISG-BR-30 - Bracket for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 30 mm.
FLT-ISG-BR-33 - Bracket for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 33 mm.
FLT-ISG-BR-39 - Bracket for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 39 mm.
FLT-ISG-BR-42 - Bracket for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 42 mm.
FLT-ISG-BR-56 - Bracket for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 56 mm.
FLT-ISG-BR-62 - Bracket for fixing the FLT-ISG-100-EX isolating spark gap to a flange, drill hole diameter of 62 mm.
