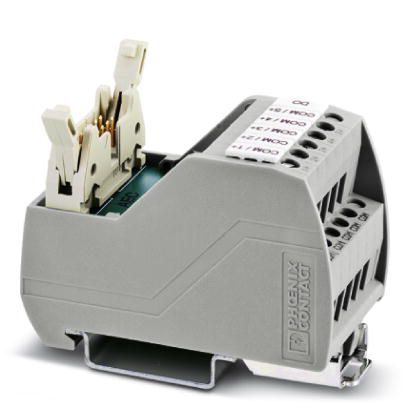

Passive module VIP-2/SC/FLK10/ROC DO
VARIOFACE Professional (VIP) board for the ROC800 controller
- These system-specific interface modules for the ROC800 controller are used in combination with the relevant system cables
- Interface from field wiring to ROC800 controller
- Compact design reduces space requirements in the control cabinet
- Field side I/O marking clearly identified when device is mounted.
- Integrated ZB marker provides per-channel labeling
- Rugged metal mounting foot allows easy DIN rail installation and removal.
Technical Specifications
Dimensions
| Width | 34.5 mm |
| Height | 65 mm |
| Depth | 44.2 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
General
| Nominal voltage UN | 60 V AC/DC |
| Max. perm. current (per branch) | 1 A |
| Number of Positions | 10 |
| Status display | No |
| Mounting Position | any |
Connection data
| Connection name | Field level |
| Connection in acc. with standard | IEC / EN |
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M 3 |
| Number of Positions | 10 |
| Conductor cross section solid | 0.2 mm² ... 4 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
Connection data 2
| Connection name | Controller level |
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 10 |
| Pitch | 2.54 mm |
Supported controller
| Controller | Emerson ROC800 |
| - suitable I/O card | ROC800 DO |
Standards and Regulations
| Standards/regulations | IEC 60664 |
| Standards/regulations | DIN EN 50178 |
| Pollution degree | 2 |
| Overvoltage category | II |
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads |
