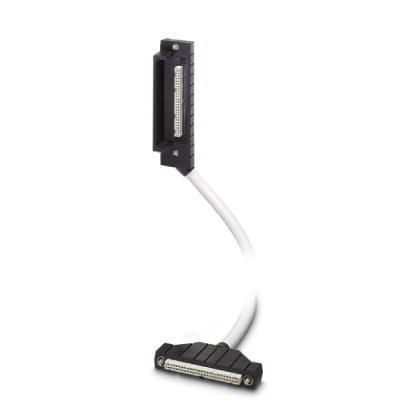

Front adapters FLK 50-PA/EZ-DR/HF/KS/4000/YOC
Cast front adapter with attached, halogen-free round cable and a 50-pos. socket strip injection-molded on both sides for the connection of Yokogawa ProSafe controllers. Cable length: 40.0 m
Technical Specifications
Note
| Type of note | Notes on operation |
| Note | No additional touch protection is required when using a SELV/PELV voltage (≤ 25 V AC or 60 V DC). |
Dimensions
| Length | 40 m |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 70 °C (fixed installation) |
| Ambient Temperature (Operation) | -10 °C ... 70 °C (flexible installation) |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of Protection | IP20 |
| Degree of Protection | ≥ IP54 (Installation location) |
General
| Max. permissible operating voltage | 30 V DC |
| Max. permissible current | 500 mA (per path) |
| Mounting Position | any |
| Nominal operating mode | 100% operating factor |
Standards and Regulations
| Flame resistance | IEC 60332-1-2 (raw cable) |
| Flame resistance | VDE 0842, Part 332-1-2 (raw cable) |
| Flame resistance | IEC 60332-3-22 (raw cable) |
| Resistance to Oil | can withstand occasional splashes (raw cable) |
| Gasoline resistance | can withstand occasional splashes (raw cable) |
| Designation | Air clearances and creepage distances |
| Standards/regulations | DIN EN 50178 |
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Insulation | Functional insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Connection data
| Connection name | Controller level |
| Connection Method | Yokogawa, I/O cards compatible |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Torque | 0.5 Nm (Screw connection) |
| Insertion/withdrawal cycles | > 50 |
Connection data 2
| Connection name | Field level |
| Connection Method | Yokogawa, KS compatible |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Torque | 0.5 Nm (Screw connection) |
| Insertion/withdrawal cycles | > 50 |
Cable
| Type of cable | Assembled, halogen-free round cable |
| Number of Positions | 50 |
| Single wires, quantity | 7 |
| Single wire, material | Cu tin-plated |
| Single wire, cross section | 0.14 mm² |
| Single wire, cross section [AWG] | 26 |
| Wire diameter incl. insulation | 1 mm ±0.03 mm |
| External Cable Diameter | 11 mm ±0.4 mm |
| Shielding | yes |
| Shielding | Tinned copper-braided shield, approx. 85% covering |
| Halogen-free cable | Yes |
| Smallest bending radius, fixed installation | 114 mm |
| Smallest bending radius, movable installation | 205 mm |
| Bending cycles | > 5000 |
| Cable insulation resistance | ≥ 20 MΩ/km (20 °C) |
| Cable resistance | ≤ 145 Ω/km (20 °C) |
| External sheath, color | gray |
| Flame resistance | IEC 60332-1-2 (raw cable) |
| Flame resistance | VDE 0842, Part 332-1-2 (raw cable) |
| Flame resistance | IEC 60332-3-22 (raw cable) |
| Resistance to Oil | can withstand occasional splashes (raw cable) |
| Gasoline resistance | can withstand occasional splashes (raw cable) |
Supported controller
| Controller | Yokogawa ProSafe-RS |
| - suitable I/O card | SDV531 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
