Official DistributorSKU
MPN
DFLK 50/FKCT
Weight
0.175 kg
Series DFLK

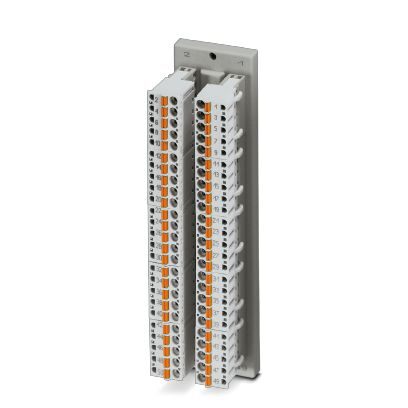

DFLK 50/FKCT - Interface module
The VARIOFACE feed-through module implements a 1:1 connection between a push-in spring-cage connection and an IDC/FLK pin strip (2.54 mm, number of positions: 50).
Technical Specifications
Note
| Type of note | Notes on operation |
| Note | Do not connect adjacent channels to SELV/ PELV and voltages dangerous to the touch. |
| Type of note | Notes on operation |
| Note | At least one functional insulation against adjacent modules is complied with (in the support rail direction). If the application has stricter requirements for the insulation (basic insulation or reinforced insulation), they must be realized by applying suitable measures (e. g. partition plates). |
Dimensions
| Width | 38 mm |
| Height | 143.5 mm |
| Depth | 59 mm |
Ambient conditions
| Ambient Temperature (Operation) | -20 °C ... 50 °C |
| Ambient temperature (storage/transport) | -20 °C ... 70 °C |
| Maximum altitude | ≤ 2000 m |
| Degree of Protection | IP20 |
| Degree of Protection | ≥ IP54 (Installation location) |
General
| Max. permissible operating voltage | 25 V AC |
| Max. permissible operating voltage | 60 V DC |
| Max. permissible current | 1 A (per path) |
| Max. permissible total current | 50 A (TA = 50°C) |
| Number of Positions | 50 |
| Status display | No |
| Mounting Position | any |
| Assembly instructions | in rows with zero spacing |
Connection data
| Connection name | Field level |
| Connection Method | Push-in spring connection |
| Stripping length | 10 mm |
| Conductor cross section solid | 0.2 mm² ... 2.5 mm² |
| Conductor cross section flexible | 0.2 mm² ... 2.5 mm² |
| Conductor cross section AWG | 24 ... 12 |
| pluggable | Yes |
Connection data 2
| Connection name | Controller level |
| Connection Method | IDC/FLK pin strip |
| Number of Connections | 1 |
| Number of Positions | 50 |
| Pitch | 2.54 mm |
Standards and Regulations
| Designation | Air clearances and creepage distances |
| Standards/regulations | DIN EN 50178 |
| Rated Insulation Voltage | 63 V |
| Rated surge voltage | 0.6 kV |
| Insulation | Functional insulation |
| Pollution degree | 2 |
| Overvoltage category | II |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
Accessories
FLK 50/EZ-DR/ 125/KONFEK - Round cable set; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: IDC/FLK socket strip (1x 50-position); cable length: 1.25 m- FLK 50/EZ-DR/1200/KONFEK - Round cable set; connection 1: IDC/FLK socket strip (1x 50-position); connection 2: IDC/FLK socket strip (1x 50-position); cable length: 12 m
