OT800U03C
Official DistributorBy ABB
SKU
ABBOT800U03C
MPN
1SCA104030R1001
Weight
38.11 kg
This item is ineligible for free shipping due to its size/weight.

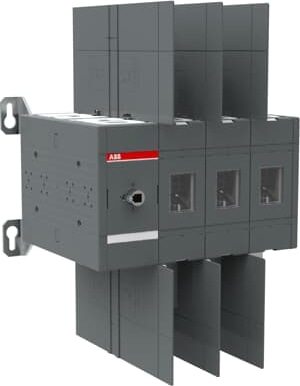

800A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately. UL version.
Technical Specifications
ABB EcoSolutions
| Environmental Information | 1SCC303050D0201 |
Dimensions
| Product Net Width | 400 mm |
| Product Net Width | 15.75 in |
| Product Net Height | 376 mm |
| Product Net Height | 14.8 in |
| Product Net Depth / Length | 335 mm |
| Product Net Depth / Length | 13.19 in |
| Product Net Weight | 38.11 kg |
| Product Net Weight | 84.02 lb |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 1600 A |
| Degree of Protection | Front IP20 |
| Distance Between Phases | Standard |
| Handle color | Black |
| Handle Type | Handle and shaft not included |
| Mechanical Durability | 3000 cycle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Operating Conditions per Pole 48 W |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-21A (Ie) | (500 V) 1600 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 1600 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 1600 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 1600 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 1600 A |
| Rated Operational Current AC-31B (Ie) | (380 ... 415 V) 1600 A |
| Rated Operational Current AC-33B (Ie) | (380 ... 415 V) 1000 A |
| Rated Operational Voltage | Main Circuit 1000 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 50 kiloampere rms |
| Standards | UL 98 / IEC60947-6-1 |
| Switches Operating Mechanism | Mechanism at the End of the Switch |
| Switches Operating Mechanism | 03 (Left Side) |
| Terminal Type | Screw Terminals |
| Tightening torque | acc. IEC 60947-1 50 ... 75 N·m |
| Transition Type | Open |
Technical UL/CSA
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 250 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 480 V) 500 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 600 V) 500 Hp |
| Tightening torque | acc. IEC 60947-1 50 ... 75 N·m |
