2902548
Official DistributorSKU
PHX2902548
MPN
PACT V1-21-44-100-5A-05-15
Weight
0.21 kg

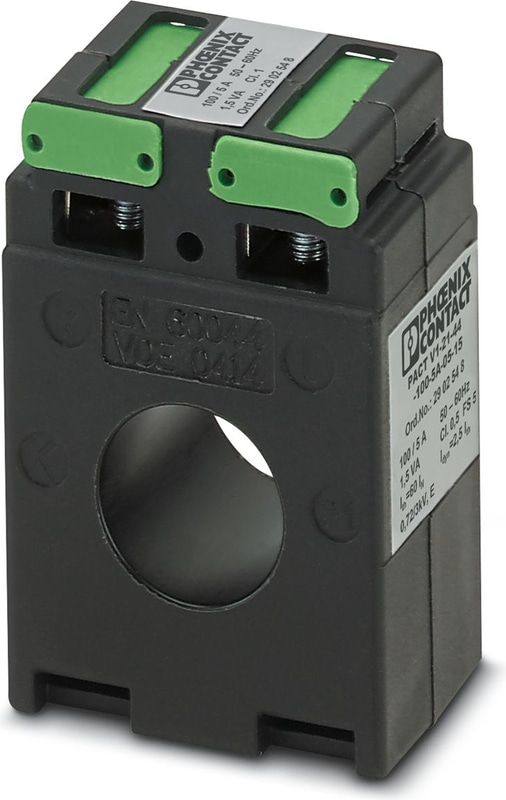

PACT V1-21-44-100-5A-05-15 - Current transformer
Bus-bar current transformer, 100 A AC primary current; 5 A AC secondary current; accuracy class 0.5; 1.5 VA rated power
Technical Specifications
Electrical properties
| Rated Insulation Voltage | 1 kV |
General
| Can be calibrated | no |
| Class | 0.5 |
| Converter type | Bus-bar current transformer |
Current transformers
| Rated power | 1.5 VA |
| Thermal rated continuous current | Id = 1.2 * In |
| Rated frequency fn | 50 Hz |
| Rated frequency fn | 60 Hz |
| Primary rated current Ipn | 0 A AC ... 100 A AC |
| Can be calibrated | no |
| Class | 0.5 |
| Converter type | Bus-bar current transformer |
Signal
| Designation | Current output |
| Secondary rated current Isn | 5 A AC |
| Accuracy class | 1 |
Connection data
| Connection Method | Screw connection |
| Conductor cross section flexible | 2x 2.5 mm² ... 4 mm² (Secondary terminals) |
Item dimensions
| Width | 30 mm |
| Height | 66 mm |
| Depth | 44 mm |
Item dimensions with alternative mounting
| Width | 44 mm |
| Height | 66 mm |
| Depth | 30 mm |
Circular conductor
| Diameter | 21 mm |
Material specifications
| Color | black (RAL 9005) |
| Housing Material | Polyamide PA fiberglass reinforced |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 40 °C |
| Ambient temperature (storage/transport) | -25 °C ... 40 °C |
Standards and Regulations
| Standards/regulations | EN 61869 |
