Official DistributorSKU

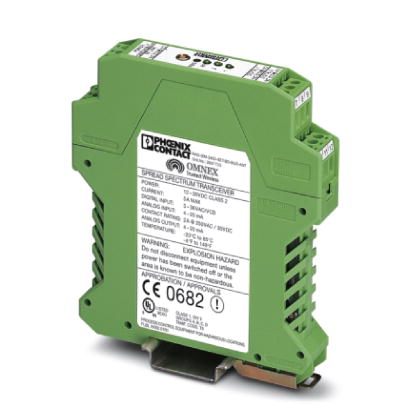

Transmitter as replacement device, for unidirectional wireless 2400 MHz transmission system. It is not possible to operate 2 transmitters in one system at the same time.
Technical Specifications
| Width | 17.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
| Ambient Temperature (Operation) | -20 °C ... 65 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Degree of Protection | IP20 |
| Wireless set | Transmitter |
| Frequency Range | 2.4032 GHz ... 2.4799 GHz |
| Direction | Uni-directional |
| Channel distance | 100 kHz |
| Number of channel groups | 9 |
| Number of channels per group | 63 |
| Transmission power | 10 mW |
| Description of the input | Current input (analog input) |
| Current Input Signal | 4 mA ... 20 mA |
| Input resistance current input | < 170 Ω |
| Switching threshold "0" signal, voltage | max. 1.5 V DC |
| Switching threshold "1" signal voltage | min. 5 V DC |
| Supply Voltage | 24 V DC -50 % / +25 % |
| Supply Voltage Range | 12 V DC ... 30 V DC |
| Typical current consumption | 35 mA |
| Max. current consumption | 45 mA |
| Mounting Position | any |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Housing Material | Polyamide PA non-reinforced |
| Conformance | CE compliance (R&TTE directive 1999/5/EC) |
| IECEx | Ex nL IIC T4 |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 14 |
| Connection Method | Screw connection |
| Stripping length | 8 mm |
| Screw thread | M3 |
