2800710
Official DistributorSKU
PHX2800710
MPN
SYS N4/I 120/240S
Weight
0.222 kg
Series SYS-N

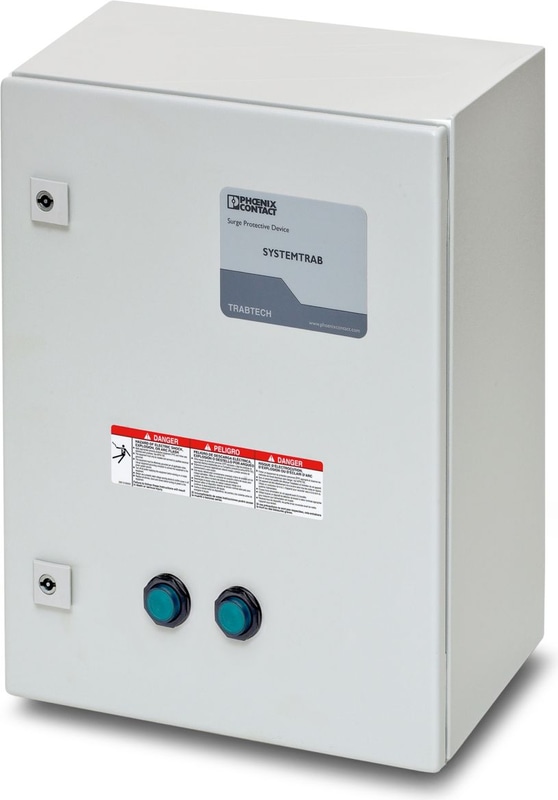

SYS N4/I 120/240S - Surge protection device
Indoor/outdoor lightning current arrester and TVSS system for 120/240 single/split phase
Technical Specifications
Product properties
| IEC test classification | I + II |
| EN type | T1 |
| Type | Housing for surface mounting |
| Surge protection fault message | Remote indication contact |
Electrical properties
| Nominal voltage UN | < 240 V |
| Fuse | 200 kA VSP100, 100 A, 200 kAIC (IR) |
General
| Power Systems | 120/240 V Single/Split Phase |
Connection data
| Conductor cross section flexible min. | 16 mm² |
| Conductor cross section flexible max. | 35 mm² |
| Conductor cross section, rigid min. | 10 mm² |
| Conductor cross section, rigid max. | 50 mm² |
| Connection Method | Screw connection |
| Conductor cross section flexible min. | 0.14 mm² |
| Conductor cross section flexible max. | 1.5 mm² |
| Conductor cross section, rigid min. | 0.14 mm² |
| Conductor cross section, rigid max. | 1.5 mm² |
Dimensions
| Width | 400 mm |
| Height | 500 mm |
| Depth | 210 mm |
Material specifications
| Housing Material | Steel |
Protective circuit
| Nominal voltage UN | 120/240 V AC (Split phase) |
| Maximum continuous voltage UC | 275 V AC |
| Follow current interrupt rating Ifi | 50 kA |
| Response time tA | ≤ 25 ns |
Ambient conditions
| Degree of Protection | IP66 / NEMA 4 |
| Ambient Temperature (Operation) | -40 °C ... 80 °C |
UL specifications
| Short-circuit current rating (SCCR) | 50 kA |
| UL type | type 2 |
| Nominal discharge current In | 20 kA |
| Maximum Surge Current per Phase | 50 kA |
| Nominal Voltage | 120/240 V AC (Split phase) |
| Power distribution system | Split phase |
Standards
| Standards/regulations | ANSI/UL 1449:2014 Ed.4+R:17MAR2016 |
| Standards/regulations | IEC 60643-1 |
| Standards/regulations | EN 61643-11 |
| Standards/regulations | CAN/CSA-C22.2 No. 8:2013 Ed.5 |
Mounting
| Mounting Type | Surface/Wall mounting |
