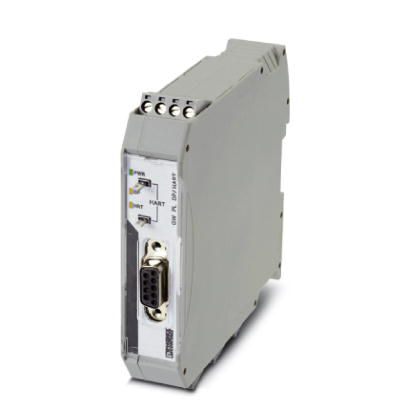

GW PL DP/HART - Protocol converter
HART to PROFIBUS DP protocol converter
Technical Specifications
Note
| Utilization restriction | EMC: class A product, see manufacturer's declaration in the download area |
Dimensions
| Width | 22.5 mm |
| Height | 99 mm |
| Depth | 114.5 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Permissible humidity (operation) | 95 % (non-condensing) |
| Altitude | 2000 m |
| Degree of Protection | IP20 |
General
| Mounting Position | On horizontal DIN rail NS 35 in acc. with EN 60715 |
| Assembly instructions | on standard DIN rail NS 35 in accordance with EN 60715 |
| Mounting Type | DIN rail: 35 mm |
| Net weight | 267.3 g |
| Housing Material | PA V0 |
| Color | gray |
| Degree of pollution | 2 |
| Overvoltage category | II |
Power supply
| Nominal Supply Voltage | 24 V DC |
| Supply Voltage Range | 18.5 V DC ... 30 V DC () |
| Max. current consumption | 75 mA |
| Connection Method | COMBICON plug-in screw terminal block |
| Conductor cross section flexible max. | 2.50 mm² |
| Conductor cross section flexible min. | 0.20 mm² |
| Conductor cross section solid max. | 2.50 mm² |
| Conductor cross section solid min. | 0.20 mm² |
| Conductor cross section AWG max. | 12 |
| Conductor cross section AWG min. | 24 |
Interfaces
| Interface 1 | PROFIBUS DP |
| Interface | RS-485 2-wire |
| No. of ports | 1 |
| Number of Connections | 2 |
| Connection Method | D-SUB 9, COMBICON |
| Connection technology | Screw connection |
| Termination resistor | 390 Ω - 220 Ω - 390 Ω (switchable) |
| Conductor cross section solid min. | 0.2 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Torque | 0.5 Nm ... 0.6 Nm |
| Protocols Supported | HART, PROFIBUS DP |
| Data rate | 9.6 kbps (min.) |
| Data rate | 12 Mbps (max.) |
| Interface 2 | HART FSK |
| Interface | Analog |
| No. of ports | 4 (Active/Passive HART devices) |
| Number of Connections | 3 |
| Connection Method | COMBICON |
| Connection technology | Screw connection |
| Conductor cross section solid min. | 0.02 mm² |
| Conductor cross section solid max. | 2.5 mm² |
| Conductor cross section flexible min. | 0.2 mm² |
| Conductor cross section flexible max. | 2.5 mm² |
| Conductor cross section AWG min. | 24 |
| Conductor cross section AWG max. | 12 |
| Torque | 0.5 Nm ... 0.6 Nm |
Standards and Regulations
| Shock | 30g, 18 ms |
| Vibration (Operation) | 5g, 10 Hz ... 150 Hz |
| ATEX | PRESAFE 16ATEX7686X, II 3G, Ex nA IIC T4 Gc |
| IECEx | IECEx PRE 16.0001X, Ex nA IIC T4 Gc |
| UL, USA / Canada | Class I, Div. 2, Groups A, B, C, D Class I, Zone 2, AEx nA IIC T4, Ex nA IIC T4 GcX |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Accessories
2201937 - DIN rail connector, color: gray, nominal current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of positions: 5, product range: TBUS5-22,5.., pitch: 3.81 mm, mounting: DIN rail mounting, locking: without, mounting: without, type of packaging: packed in cardboard, Item with gold-plated contacts, bus connectors for connecting with electronics housings, 5 parallel contacts
2313672 - D-SUB connector, 9-pos., male connector, 90° cable entry, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; IDC terminal block connection
2313698 - D-SUB connector, 9-pos., male connector, 90° cable entry, bus system: PROFIBUS DP up to 12 Mbps, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks
2313708 - D-SUB connector, 9-pos., male connector, 90° cable entry, bus system: PROFIBUS DP up to 12 Mbps with PG D-SUB socket for connecting a programming device, termination resistor can be switched on via slide switch, pin assignment: 3, 5, 6, 8; screw connection terminal blocks
