2203904
Official DistributorSKU
PHX2203904
MPN
ICS-FE-CONTACT
Weight
0 kg
This product is Not Cancellable/Not Returnable

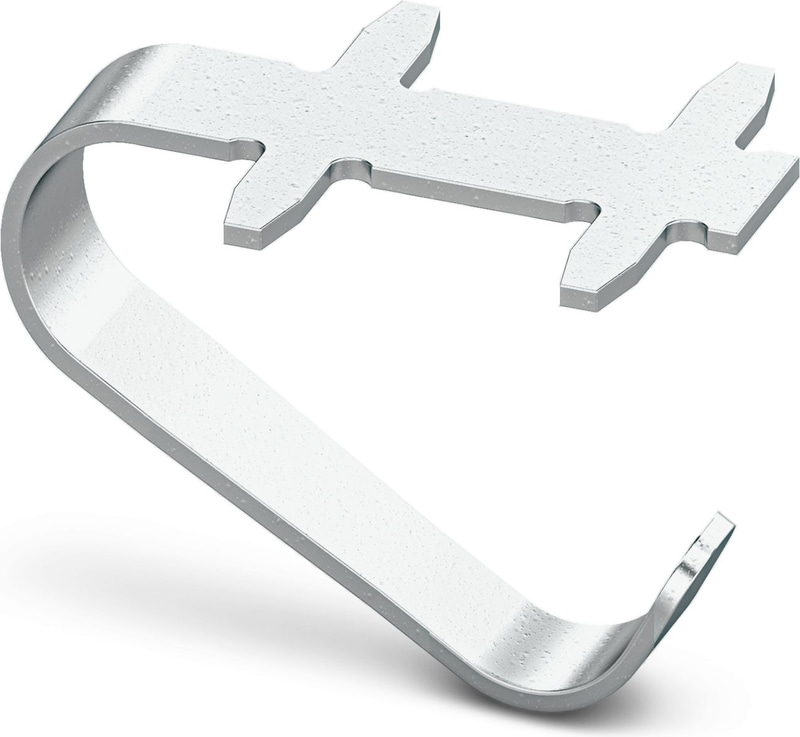

ICS-FE-CONTACT - Functional ground contact
Functional ground contact, for ICS series electronics housings
- Flexible use, thanks to the modular system and unique modularity in the connection technology
- Standardized connections such as RJ45, USB, D-SUB and antenna sockets as components that can be integrated
- Optimal space utilization, as well as adaptability of design, colors, and printing
- Eight-position DIN rail connectors with parallel and up to two serial contacts for easy module-to-module communication
Technical Specifications
Notes
| Note on application | Optional accessories |
Product properties
| Housing type | DIN rail housing |
| Housing series | ICS |
| Type | FE contact |
Dimensions
| Width | 7.1 mm |
| Height | 11 mm |
| Depth | 7.34 mm |
Material specifications
| Color | silver |
| Color | Silver |
| Housing Material | Steel, tin-plated |
Why Proax for Phoenix Contact 2203904?
Proax is an authorized distributor of Phoenix Contact 2203904 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
