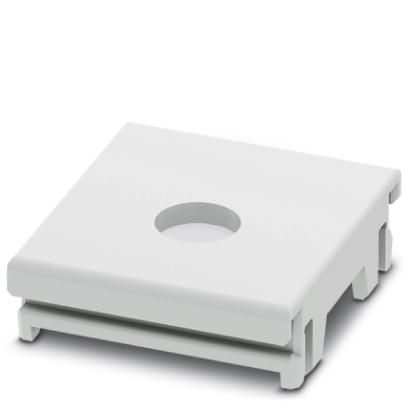

ICS25-F22A-7035 - Connection plate
DIN rail housing, ICS filler, with antenna function cutout, width: 25 mm, height: 7.25 mm, depth: 22.4 mm, color: light grey (similar RAL 7035)
- Flexible use, thanks to the modular system and unique modularity in the connection technology
- Standardized connections such as RJ45, USB, D-SUB and antenna sockets as components that can be integrated
- Optimal space utilization, as well as adaptability of design, colors, and printing
- Customized processing for any customer-specific connection technology
- Easy and fast push-in mounting of assembled printed-circuit boards, thanks to stable guide rails
Technical Specifications
Item properties
| Brief article description | Connection plate |
| Type | ICS25-F22A-7035 |
| Item no. | 2203894 |
| Housing type | DIN rail housing |
| Housing series | ICS |
| Range of articles | ICS25 |
| Suitable for housing width | 25 mm (ICS25) |
| Suitable for housing width | 50 mm (ICS50) |
| Type | ICS filler, with antenna function cutout |
| Max. IP code to attain | IP20 |
| Mounting Type | Slot |
| Ventilation openings present | no |
Dimensions
| Caption | Schematic figure for illustrating the item dimensions. The figure is not of the desired product. For further details, refer to the product drawings in the “Downloads” tab. |
| Width [ w ] | 25 mm |
| Height [ h ] | 7.25 mm |
| Depth [ d ] | 22.4 mm |
Material data
| Housing Material | Polyamide |
| Surface characteristics | untreated |
| Color (RAL) | light gray (7035) |
| CTI according to IEC 60112 | 600 |
| Flammability rating according to UL 94 | V0 |
Ambient conditions
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Number of PCB holders | 2 |
| PCB thickness | 1.4 mm ... 1.8 mm |
| Type of PCB mount | Slot |
Mechanical strength/tumbling barrel
| Specification | IEC 60068-2-31:2008-05 |
| Height of fall | 50 cm |
| Number of drop cycles | 50 |
Vibration test
| Specification | IEC 60068-2-6:2007-12 |
| Frequency | 10 - 150 - 10 Hz |
| Sweep speed | 1 octave/min |
| Amplitude | 0.15 mm (10 - 58.1 Hz) |
| Acceleration | 2g (58.1 - 150 Hz) |
| Test duration per axis | 2.5 h |
| Test directions | X-, Y- and Z-axis |
Shock
| Specification | IEC 60068-2-27:2008-02 |
| Pulse shape | Half-sine |
| Acceleration | 15g |
| Shock duration | 11 ms |
| Number of shocks per direction | 3 |
| Test directions | X-, Y- and Z-axis (pos. and neg.) |
Thermostability (ball thrust test)
| Specification | IEC 60695-10-2:2014-02 |
| Temperature | 125 °C |
| Test duration | 1 h |
| Force | 20 N |
Test for assessing the risk of fire (glow wire)
| Specification | DIN EN 60695-2-11 (VDE 0471-2-11):2014-11 |
| Temperature | 850 °C |
| Time of exposure | 30 s |
Testing for paint wetting impairment substances (LABS-conformity)
| Specification | VDMA 24364:2018-05 |
| Testing | Labeling of LABS-conformity |
General information
| Type of note | Assembly instruction: |
| Note | Refer to the data sheet for the range in the download area. |
Packaging information
| Pieces per package | 10 |
| Denomination packing units | Pcs. |
| Outer packaging type | Resealable bag |
Standards and Regulations
| Flammability rating according to UL 94 | V0 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
| China RoHS | No hazardous substances above threshold values |
