UCS GD 9005 - Mounting set

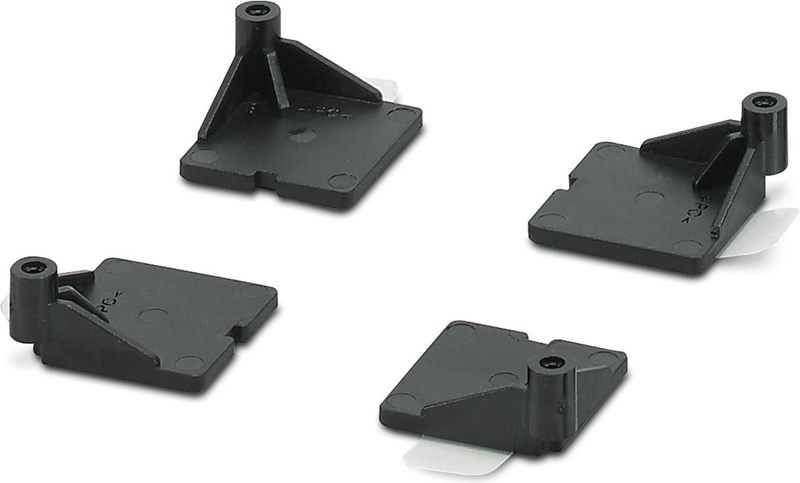

Adhesive screw boss, for securing the printed-circuit board, material: polyamide; content 4 pieces with screws 2.5 x 8
- Flexible PCB attachment, adapts to virtually all form factors
- Practical customization options
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
| Note on application | Attach the adhesive pads: Make sure that the surface of the housing is clean, dry, and free of grease. Temperature range: +18°C ... +30°C / Closing pressure force: 60 N / Closing pressure time: 3 s |
Product properties
| Housing type | Universal housings |
| Housing series | UCS |
| Type | including screws for PCB mounting |
| Ventilation openings present | no |
Dimensions
| Width | 21.8 mm |
| Height | 21.8 mm |
| Depth | 10 mm |
PCB design
| PCB thickness | 0.8 mm ... 3 mm |
Material specifications
| Color (Housing) | black (RAL 9005) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Insulating material | PA |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
| Surface characteristics | galvanized |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
PCB data
| Number of PCB holders | 1 |
| Type of PCB mount | Bolt mounting |
| Thickness of the PCB | 0.8 mm ... 3 mm |
Mounting
| Mounting Type | adhesive |
| Mounting Position | any |
| Tightening torque / speed | Mounting the PCB: 0.4 Nm-0.5 Nm / 500 rpm-1000 rpm |
Packaging specifications
| Type of packaging | PE bag |
