2203392
Official DistributorSKU
PHX2203392
MPN
UCS PED 7035
Weight
0.033 kg
Series UCS-PED

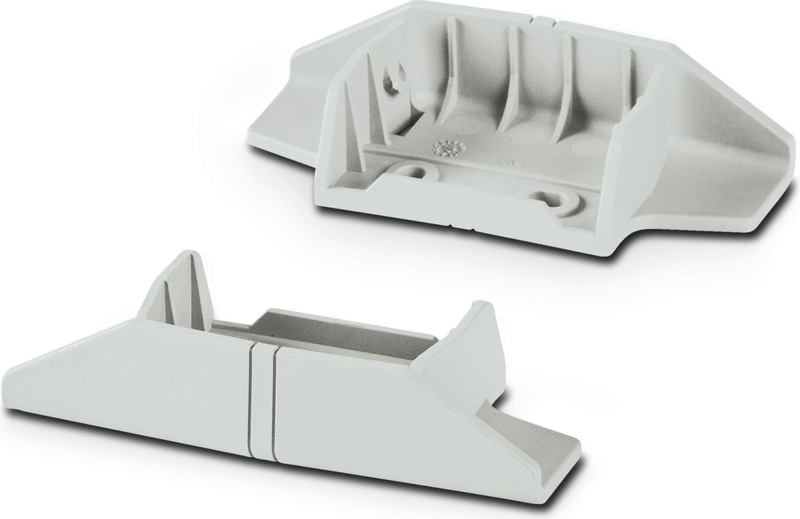

UCS PED 7035 - Stand
Stand for mounting the UCS housing; height: 47 mm; material: polyamide; color: light gray, similar to RAL 7035; wall mounting option is integrated, snaps into the screw holes of the housing
- Practical customization options
- Tool-free snap-in principle enables easy mounting on the device panel
- Flexible mounting options for the control cabinet and use in the field
- Can be adapted to suit the application, thanks to identical receptacles in the housing
- Different colors for high recognition value inside and outside the control cabinet
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
| General | The UCS PED... stand has drill holes that are also suitable for wall mounting.Recommended screws for wall mounting: S5 dowel, screw ø 4.0 mm. |
Product properties
| Housing type | Universal housings |
| Housing series | UCS |
| Ventilation openings present | no |
Dimensions
| Width | 90 mm |
| Height | 37.5 mm |
| Depth | 19.2 mm |
| Diameter mounting hole | 4 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V0 |
| CTI according to IEC 60112 | 600 |
| Insulating material | PA |
| Housing Material | Polyamide |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP40 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 80 % |
Mounting
| Mounting Type | Snap in |
| Mounting Position | Wall mounting |
Packaging specifications
| Type of packaging | PE bag |
