2203346
Official DistributorSKU
PHX2203346
MPN
UCS CP 7035
Weight
0.007 kg
Series UCS-CP

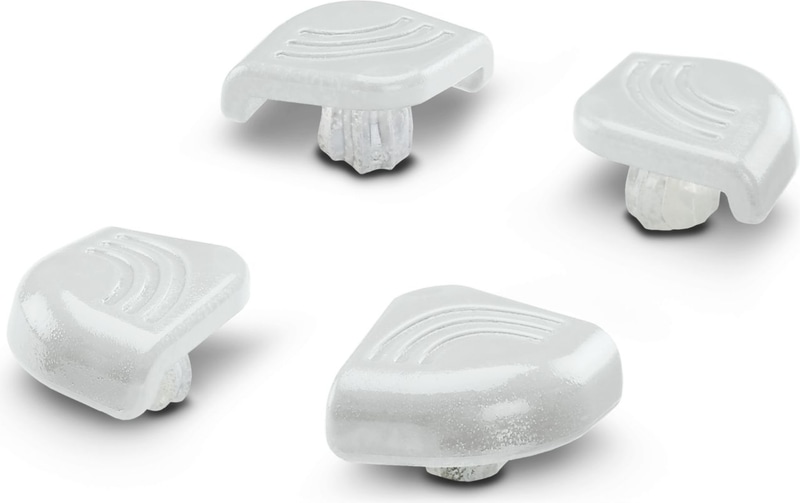

UCS CP 7035 - Corner guards
Adapter for protecting the corners of the UCS housing; material: TPE-U; color: light gray, similar to RAL 7035; held in the screw holes of the housing
- Flexible mounting options for the control cabinet and use in the field
- Can be adapted to suit the application, thanks to identical receptacles in the housing
- Different colors for high recognition value inside and outside the control cabinet
Technical Specifications
Notes
| Assembly instruction: | Refer to the data sheet for the range in the download area. |
Product properties
| Housing type | Universal housings |
| Housing series | UCS |
| Ventilation openings present | no |
Dimensions
| Width | 17.3 mm |
| Height | 17.3 mm |
| Depth | 11.7 mm |
Material specifications
| Color (Housing) | light grey (RAL 7035) |
| Flammability rating according to UL 94 | V2 |
| CTI according to IEC 60112 | 600 |
| Insulating material | TPE-U |
| Housing Material | TPE-U |
| Surface characteristics | untreated |
Ambient conditions
| Max. IP code to attain | IP40 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
| Relative humidity (storage/transport) | 95 % |
Mounting
| Mounting Type | Snap in |
Packaging specifications
| Type of packaging | PE bag |
