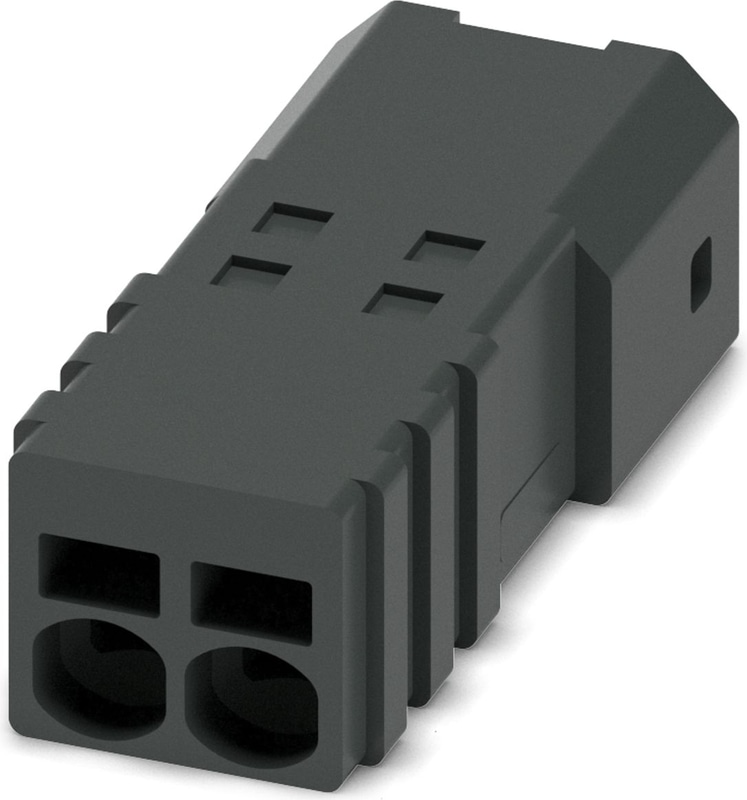

The figure shows a 3-pos. version of the product
AllConnectorsTerminal blocksPCB terminal blocks and connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
PTSM 0,5/ 2-PI-2,5 BK
Weight
0.001 kg
Series PTSM

PTSM 0,5/ 2-PI-2,5 BK - PCB connectors

PCB connector, nominal cross section: 0.5 mm2, color: black, nominal current: 6 A, rated voltage (III/2): 160 V, contact surface: Tin, contact connection type: Pin, number of potentials: 2, number of rows: 1, number of positions: 2, number of connections: 2, product range: PTSM 0,5/..-PI, pitch: 2.5 mm, connection method: Push-in spring connection, conductor/PCB connection direction: 0 °, plug-in system: COMBICON PTSM, locking: without, mounting: without, type of packaging: packed in cardboard

  • Time saving push-in connection, tools not required
  • Defined contact force ensures that contact remains stable over the long term
  • High current carrying capacity of 6 A in very compact dimensions
  • Inverted connector with pin contacts for touch-proof device outputs or free-hanging cable/cable connections
Technical Specifications

Product properties

Product familyPTSM 0,5/..-PI
Product lineCOMBICON Connectors XS
TypeInverted
Number of Positions2
Pitch2.5 mm
Number of Connections2
Number of rows1
Number of potentials2

Electrical properties

Nominal current IN6 A
Nominal voltage UN160 V
Degree of pollution3
Contact resistance4.2 mΩ
Rated voltage (III/3)100 V
Rated surge voltage (III/3)1.5 kV
Rated voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
Rated voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV

Connection technology

TypeInverted
Connector systemCOMBICON PTSM
Nominal cross section0.5 mm²
Contact connection typePin

Interlock

Locking Typewithout
Mounting flangewithout

Conductor connection

Connection MethodPush-in spring connection
Conductor/PCB connection direction0 °
Conductor cross section rigid0.14 mm² ... 0.5 mm²
Conductor cross section flexible0.2 mm² ... 0.5 mm² (up to 0.75 mm² supported, with a stripping length of 7.5 mm and a rated insulation voltage of 32 V at III/2)
Conductor cross section AWG24 ... 20
Conductor cross section flexible, with ferrule without plastic sleeve0.25 mm² ... 0.5 mm²
Conductor cross section, flexible, with ferrule, with plastic sleeve0.25 mm² ... 0.34 mm² (possible from 0.14 mm², when using ferrule AI 0.14- 6 GY in combination with crimping pliers CRIMPFOX 10T-F)
Cylindrical gauge a x b / diameter- / 1.2 mm
Stripping length6 mm

Material data - contact

NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact MaterialCu alloy
Surface characteristicshot-dip tin-plated
Metal surface terminal point (top layer)Tin (4 - 8 µm Sn)
Metal surface contact area (top layer)Tin (4 - 8 µm Sn)

Material data - housing

Color (Housing)black (9005)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C

Dimensions

Pitch2.5 mm
Width [w]6.7 mm
Height [h]5 mm
Length [l]15.5 mm

Conductor connection

SpecificationIEC 60999-1:1999-11
ResultTest passed

Test for conductor damage and slackening

SpecificationIEC 60999-1:1999-11
ResultTest passed

Repeated connection and disconnection

SpecificationIEC 60999-1:1999-11
ResultTest passed

Pull-out test

SpecificationIEC 60999-1:1999-11
Conductor cross section/conductor type/tractive force setpoint/actual value0.14 mm² / solid / > 10 N
Conductor cross section/conductor type/tractive force setpoint/actual value0.2 mm² / flexible / > 10 N
Conductor cross section/conductor type/tractive force setpoint/actual value0.5 mm² / solid / > 20 N
Conductor cross section/conductor type/tractive force setpoint/actual value0.5 mm² / flexible / > 20 N
Conductor cross section/conductor type/tractive force setpoint/actual value0.75 mm² / flexible / > 30 N

Insertion and withdrawal forces

ResultTest passed
No. of cycles10
Insertion strength per pos. approx.3 N
Withdraw strength per pos. approx.2 N

Resistance of inscriptions

SpecificationIEC 60068-2-70:1995-12
ResultTest passed

Polarization and coding

SpecificationIEC 60512-13-5:2006-02
ResultTest passed

Visual inspection

SpecificationIEC 60512-1-1:2002-02
ResultTest passed

Dimension check

SpecificationIEC 60512-1-2:2002-02
ResultTest passed

Vibration test

SpecificationIEC 60068-2-6:2007-12
Frequency10 - 150 - 10 Hz
Sweep speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h

Durability test

SpecificationIEC 60512-9-1:2010-03
Impulse withstand voltage at sea level2.95 kV
Contact resistance R14.2 mΩ
Contact resistance R24.3 mΩ
Insertion/withdrawal cycles10
Insulation resistance, neighboring positions> 5 MΩ

Climatic test

SpecificationISO 6988:1985-02
Corrosive stress0.2 dm3 SO2 on 300 dm3/40 °C/1 cycle
Thermal stress100 °C/168  h
Power-frequency withstand voltage1.39 kV

Ambient conditions

Ambient Temperature (Operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C

Thermal test | Test group C

SpecificationIEC 60512-5-1:2002-02
Tested number of positions8

Insulation resistance

SpecificationIEC 60512-3-1:2002-02
Insulation resistance, neighboring positions> 5 MΩ

Temperature cycles

SpecificationIEC 60999-1:1999-11
ResultTest passed

Air clearances and creepage distances |

SpecificationIEC 60664-1:2007-04
Insulating material groupI
Comparative tracking index (IEC 60112)CTI 600
Rated insulation voltage (III/3)100 V
Rated surge voltage (III/3)1.5 kV
minimum clearance value - non-homogenous field (III/3)0.8 mm
minimum creepage distance (III/3)1.8 mm
Rated insulation voltage (III/2)160 V
Rated surge voltage (III/2)2.5 kV
minimum clearance value - non-homogenous field (III/2)1.5 mm
minimum creepage distance (III/2)1.5 mm
Rated insulation voltage (II/2)320 V
Rated surge voltage (II/2)2.5 kV
minimum clearance value - non-homogenous field (II/2)1.5 mm
minimum creepage distance (II/2)1.6 mm

Packaging specifications

Type of packagingpacked in cardboard
Accessories
  • Phoenix Contact1205202
    1205202
    Screwdriver - SZS 0,4X2,0
  • Phoenix Contact3203040
    3203040
    AI 0,25- 6 BU - Ferrule, sleeve length: 6 mm, color: blue
  • Phoenix Contact3203024
    3203024
    AI 0,25- 6 YE - Ferrule, sleeve length: 6 mm, color: yellow
  • Phoenix Contact3203053
    3203053
    AI 0,34- 6 TQ - Ferrule, sleeve length: 6 mm, color: turquoise
