1585362
Official DistributorSKU
PHX1585362
MPN
HC-A10-I-PT-F
Weight
0.044 kg
This product is Not Cancellable/Not Returnable
Series HC-A

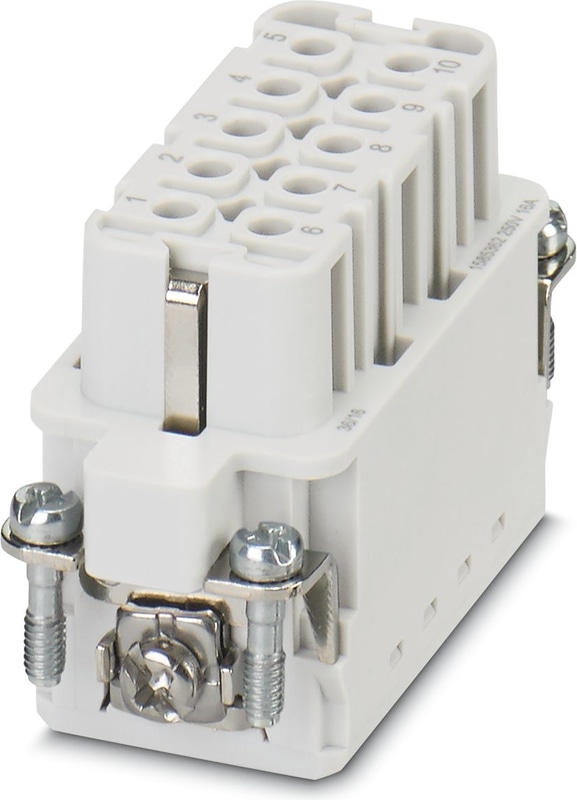

HC-A10-I-PT-F - Contact insert
Contact insert, number of positions: 10+PE, size: D15, number of connections per position: 1, Socket, Push-in connection, 250 V, 16 A, 0.14 mm2 ... 2.5 mm2
- Easy installation without tools, even when mounted, with push-in connection technology
- Shortest installation time compared to other connection technologies
- Quick and effortless wiring, in particular when space is tight
- Automatic cabling with robots possible
- Safe wiring and operation with color-coded actuators
- Shock and vibration-resistant in accordance with DIN EN 61373
- Cost-effective and fast coding with plastic profiles
Technical Specifications
Notes
| General | only use flexible conductors with ferrules |
| General | Connectors may be operated only when there is no load/voltage. |
| General | For HEAVYCON housing of type D15 |
Mounting
| Assembly instructions | To ensure correct use, installation in housing with IP54 protection or better is required |
| Assembly instructions | for plastic coding profiles: 4 pcs. |
Product properties
| Series | HC-A |
| Type | D15 |
| Number of Positions | 10 |
| Connection profile | 10+PE |
| Contact numbering | 1 - 10 |
| Number of connections per position | 1 |
| Contact material type | rolled |
| Screwdriver blade | 0.5 x 3.5 mm |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Dimensions
| Width | 23 mm |
| Height | 34.1 mm |
| Length | 55.5 mm |
| Drill hole distance, horizontal | 49.5 mm |
| Drill hole distance, vertical | 16 mm |
Mechanical characteristics
| Contact diameter | 2.5 mm |
Connection technology
| Connection technology | Push-in connection |
| Number of connections per position | 1 |
Conductor connection
| Conductor Cross Section | 0.14 mm² ... 2.5 mm² |
| Connection cross section AWG | 26 ... 14 |
| Tightening torque | 0.7 Nm ... 1 Nm (PE connection) |
| Tightening torque | 0.5 Nm ... 0.8 Nm (Mounting screws for mounting in the HEAVYCON housing) |
| Stripping length of the individual wire | 8 mm |
Electrical properties
| Rated voltage (III/3) | 250 V |
| Rated surge voltage | 4 kV |
| Rated surge voltage | 4 kV |
| Rated current | 16 A |
Mechanical data
| Insertion/withdrawal cycles | ≥ 500 |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Contact Material | Copper alloy |
| Contact surface material | Ag |
| Contact carrier material | PC |
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 125 °C (including heating up of contacts) |
Testing
| Standards/regulations | PC: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
Accessories
HC-CB - Coding pin, prevents mismating of up to six connectors with an identical number of positions
CRIMPFOX 6 - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
