Series SAC-6P
Bus system cable - SAC-6P- 5,0-970/FR SCO

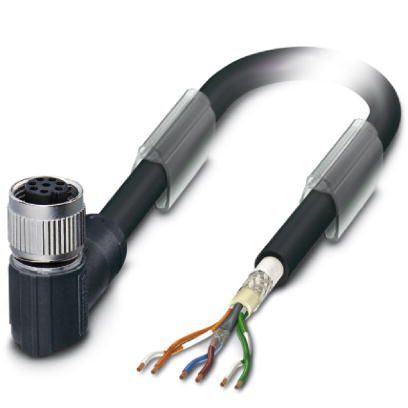

Bus system cable, VARAN (100 Mbps), 6-position, SANTOPRENE halogen-free/TPE halogen-free, black RAL 9005, shielded, free cable end, on Socket angled M12 SPEEDCON, coding: A, cable length: 5 m
Technical Specifications
Dimensions
| Length of Cable | 5 m |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Ambient Temperature (Operation) | -25 °C ... 90 °C (Plug / socket) |
| Degree of Protection | IP65 |
| Degree of Protection | IP67 |
General
| Rated current at 40°C | 2 A |
| Rated voltage | 30 V AC |
| Rated voltage | 30 V DC |
| Number of Positions | 6 |
| Color handle area | black |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Signal type/category | VARAN, 100 Mbps |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Torque | 0.4 Nm (M12 connector) |
Material
| Flammability rating according to UL 94 | HB |
| Contact Material | CuZn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Material of grip body | TPU, hardly inflammable, self-extinguishing |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Pin assignment
| Contact | Color (signal designation) | Contact (optional) | 1 (Socket) |
| Contact | Color (signal designation) | Contact (optional) | 4 (Socket) |
| Contact | Color (signal designation) | Contact (optional) | 6 (Socket) = BU (Power) |
| Contact | Color (signal designation) | Contact (optional) | 7 (Socket) = BN (Power) |
| Contact | Color (signal designation) | Contact (optional) | 5 (Socket) = GN/WH (RD+) |
| Contact | Color (signal designation) | Contact (optional) | 8 (Socket) = GN (RD-) |
| Contact | Color (signal designation) | Contact (optional) | 2 (Socket) = OG/WH (TD+) |
| Contact | Color (signal designation) | Contact (optional) | 3 (Socket) = OG (TD-) |
Cable
| Cable Type | VARAN |
| Cable type (abbreviation) | 970 |
| Cable abbreviation | Li9YD12Y |
| Cable structure | 1x2xAWG22/19 + 1x4xAWG24/19 |
| Conductor Cross Section | 4x 0.25 mm² (Signal line) |
| Conductor Cross Section | 2x 0.38 mm² (Power supply) |
| AWG Signal Line | 24 |
| AWG Power Supply | 22 |
| Conductor structure signal line | 19x 0.13 mm |
| Conductor structure, voltage supply | 19x 0.16 mm |
| Core diameter including insulation | 1.35 mm (Signal line) |
| Core diameter including insulation | 1.5 mm (Power supply) |
| Wire colors | Brown, blue, white/orange, white/green, green, orange |
| Type of pair shielding | Tinned copper braided shield, 95 % covering |
| Overall twist | 1 star quad and 2 wires with 2 fillers |
| Shielding | Tinned copper-braided shield, approx. 85% covering |
| External cable diameter D | 7.8 mm ±0.2 mm |
| Smallest bending radius, fixed installation | ≥ 93 mm |
| Smallest bending radius, movable installation | ≥ 93 mm |
| Number of bending cycles | 3000000 |
| Bending Radius | 93 mm |
| Traversing path | 2 m |
| Traversing rate | 1 m/s |
| Acceleration | 2 m/s² |
| Cable weight | 81 kg/km |
| External sheath, color | black RAL 9005 |
| Outer sheath, material | SANTOPRENE halogen-free |
| Material, inner sheath | TPE |
| Material, filler | Yarn |
| Material conductor insulation | PP |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | 5 GΩ*km (Data cable) |
| Conductor resistance | 77 Ω/m (Data cable) |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Transmission Speed | 100 Mbps |
| Working capacitance | 50 nF (Data cable) |
| Wave impedance | 100 Ω ±15 % |
| Nominal voltage, cable | 125 V (Data cable) |
| Nominal voltage, cable | 48 V (Power supply) |
| Test voltage, cable | 2000 V (Power supply) |
| Test voltage, cable | max. 700 V AC (Data cable) |
| Halogen-free | in accordance with DIN EN 50267-2-1 |
| Ambient Temperature (Operation) | -20 °C ... 80 °C (Cable) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
| China RoHS | Environmentally Friendly Use Period = 50 years |
| China RoHS | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
