SACC-E-M12FSL4FEM16XL/0,2GR/-1,5

Weight

0.033 kg

This product is Not Cancellable/Not Returnable

Series SACC-E-M

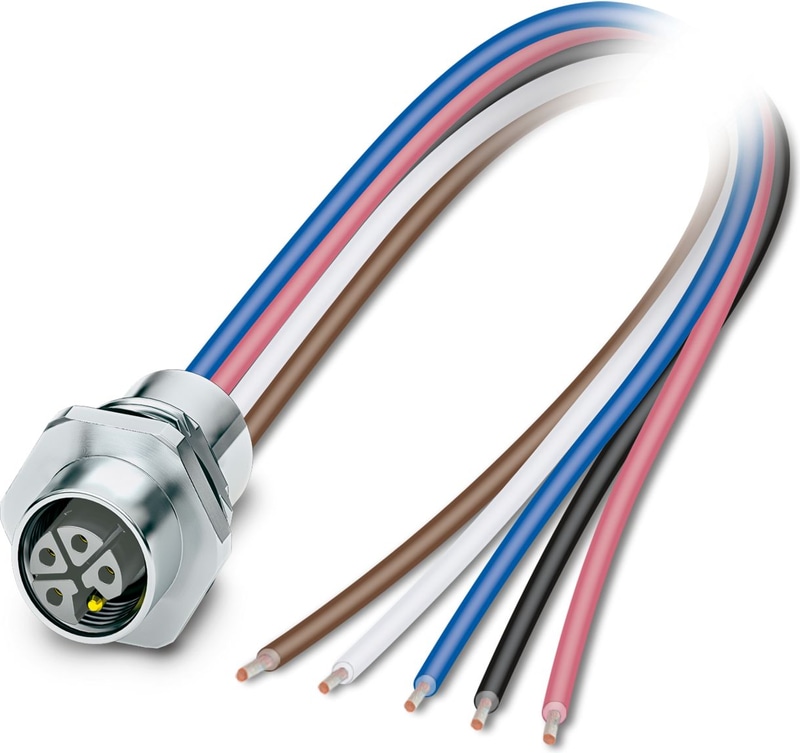

SACC-E-M12FSL4FEM16XL/0,2GR/-1,5 - Device connector front mounting

Device connector front mounting, Power, 5-position, Socket, straight, M12-Standard, coding: L, on free cable end, Front mounting, M16 x 1.5, Individual wires, cable length: 0.2 m, 1.31 mm2, UL/cUL stranded hook-up wire, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239542

For compact devices: transmit high power in a confined space
Easy-to-install, optimized XL housing contour with wrench size 19
Mechanical tightening limitation for long-term-stable gasket
Preassembled with litz wires for immediate use
Customer-specific assemblies and litz wire lengths available
Sealed on the litz wire side for optimum leak-tightness
For high transmission safety: shield connection to the housing with optional EMC nut

Notes

Notes on operation	The electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Notes on operation	FE not connected to metal parts that can be touched, no protective function

Mounting

Mounting Type	Front mounting M16 x 1.5 XL version, tightening limitation
Assembly instructions	XL version, tightening limitation

Product properties

Sensor Type	Power
Number of Positions	5
No. of cable outlets	1
Shielded	no
Coding	L
Thread type	M12

Insulation characteristics

Overvoltage category	III
Degree of pollution	3

Material specifications

Color	gray
Flammability rating according to UL 94	V0
Seal material	FKM
Contact Material	CuZn
Contact surface material	Au
Contact carrier material	PA
Material for screw connection	Zinc die-cast, nickel-plated
Conductor material	Bare Cu litz wires

Electrical properties

Rated voltage in acc. with IEC 61076-2-101	63 V
Rated surge voltage	1.5 kV
Rated surge voltage	1.5 kV AC/DC
Nominal voltage U_N	63 V DC
Nominal current I_N	12 A
Test voltage	1.5 kV
Test voltage Core/Core	3 kV

Conductor connection

Connection Method	Individual wires
Contact connection type	Socket
Conductor Cross Section	1.31 mm²

Mechanical data

Insertion/withdrawal cycles

> 100

Connection 1

Head design	Socket
Head cable outlet	straight
Head thread type	M12
Head locking type	Standard
Coding	L

Connection 2

Head design

free cable end

Cable/line

Cable Length	0.2 m
Cable Type	UL/cUL stranded hook-up wire
Signal type/category	Power
Wire diameter incl. insulation	2 mm
Single wire, color	brown 1, white 2, blue 3, black 4, pink FE
Cable cross section	1.31 mm²
Conductor material	Bare Cu litz wires
AWG Signal Line	16
Material wire insulation	mPPE
Test voltage Core/Core	3 kV
Halogen-free	yes
Flame resistance	in acc. to UL 1581 VW1
Ambient Temperature (Operation)	-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)	-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)	-25 °C ... 105 °C (Cable, flexible installation)

Ambient conditions

Degree of Protection	IP67
Degree of Protection	IP65/IP67
Ambient Temperature (Operation)	-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)	-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)	-25 °C ... 105 °C (Cable, flexible installation)
Ambient Temperature (Operation)	-40 °C ... 105 °C (cable, fixed installation)

Standards and Regulations

Flame resistance

in acc. to UL 1581 VW1

M12

Standard designation	M12 connector
Standards/specifications	IEC 61076-2-111
Note	In line with

1504097
Flat nut, Screw mounting, M16 x 1.5, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239863
