1424863
Official DistributorSKU
PHX1424863
MPN
HC-STA-B48-BWS-EMC-AL
Weight
0.465 kg
Series HC-STA-B

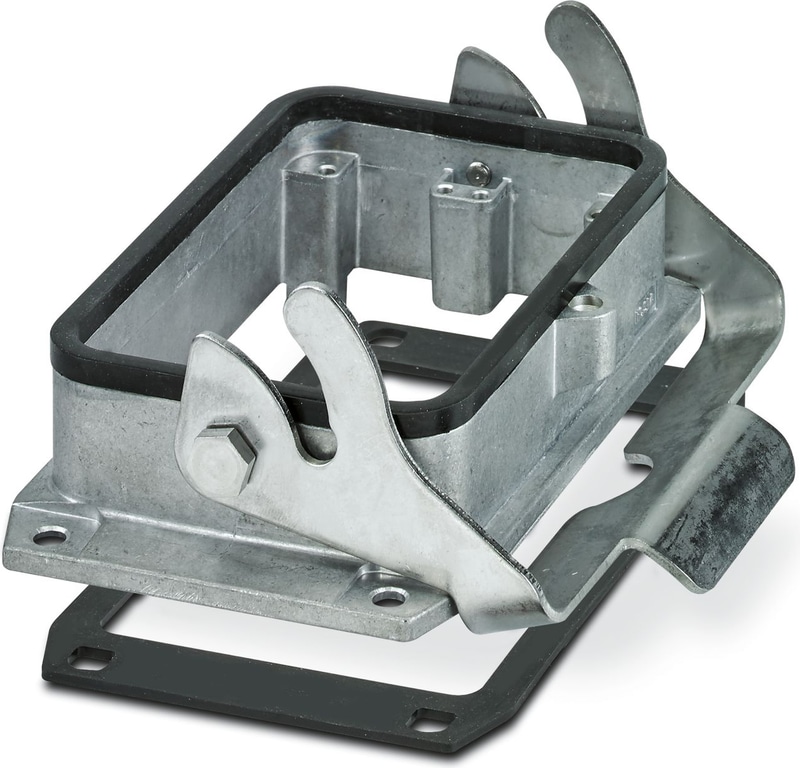

HC-STA-B48-BWS-EMC-AL - Housing
Panel mounting base B48, with single locking latch, material: Die-cast aluminum, salt water resistant, height: 39.4 mm, cable gland: none, Standard, with flat gasket
- Good shielding in the event of electromagnetic interference
Technical Specifications
Product properties
| Housing type | Panel mounting base |
| Application | Standard |
| Type | B48 |
| Pg screw connection | none |
Dimensions
| Width | 99.2 mm |
| Height | 39.4 mm |
| Length | 162 mm |
| Drill hole distance, horizontal | 148 mm |
| Drill hole distance, vertical | 70 mm |
| Hole diameter | 6.5 mm |
Installation dimensions
| Width of the assembly cutout | 81 mm |
| Length of the assembly cutout | 117 mm |
Material specifications
| Flammability rating according to UL 94 | V0 (Interlock) |
| Seal material | NBR, conductive |
| Seal material | NBR, conductive |
| Housing Material | Die-cast aluminum, salt water resistant |
| Housing surface material | uncoated |
| Locking latch material | Stainless steel |
| Impact strength | IK08 |
Mechanical data
| Locking Type | Latch |
Ambient conditions
| Degree of Protection | IP66 |
| Degree of Protection | IP67 |
| Enclosure rating (NEMA) | 4 (UL 50e) |
| Enclosure rating (NEMA) | 4X (UL 50e) |
| Enclosure rating (NEMA) | 12 (UL 50e) |
| Impact strength | IK08 |
| Ambient Temperature (Operation) | -40 °C ... 125 °C |
Why Proax for Phoenix Contact 1424863?
Proax is an authorized distributor of Phoenix Contact 1424863 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
